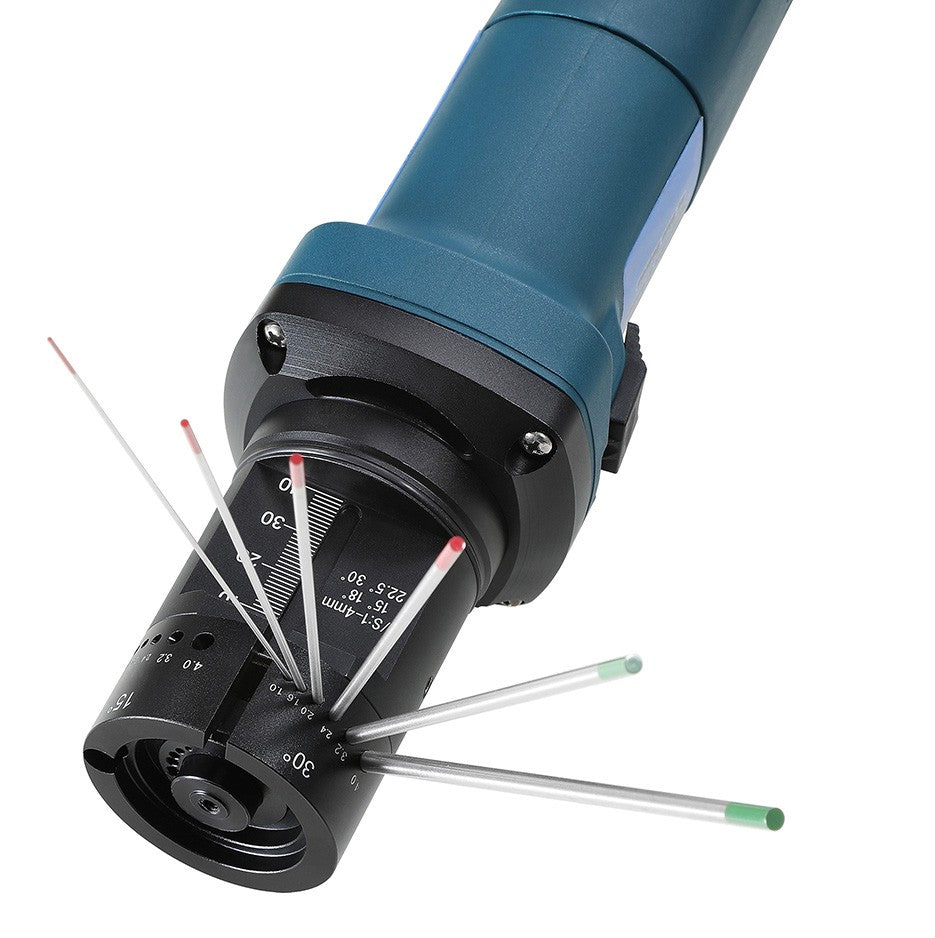

JavWeld Handheld Tungsten Electrode Grinder

JavWeld Handheld Tungsten Electrode Grinder

The JavWeld Handheld Tungsten Electrode Grinder is a compact, precision tool engineered for fast and accurate sharpening of TIG welding electrodes. Designed for professional welders, it delivers consistent tip angles for optimal arc performance, reduced tungsten contamination, and extended electrode life — all in a lightweight, portable design.

Key Features

• Precision Grinding: Produces accurate and repeatable tungsten tip angles for superior TIG arc control.

• Portable Handheld Design: Lightweight, ergonomic body allows easy use on-site or in the workshop.

• Enclosed Grinding System: Captures dust and tungsten particles for cleaner, safer operation.

• Long Service Life: Fitted with high-quality diamond grinding wheels for durable performance.

• Quick Angle Adjustment: Supports multiple tip angles for DC and AC TIG applications.

• Universal Compatibility: Suitable for 1.0 mm to 4.0 mm tungsten electrodes.

Specifications

• Brand: JavWeld

• Type: Handheld Tungsten Electrode Grinder

• Power Supply: 220 V (AC)

• Grinding Wheel: Diamond-coated wheel (replaceable)

• Electrode Sizes: 1.0 mm – 4.0 mm

• Tip Angles: Adjustable (20°–60° range)

• Applications: TIG welding electrode sharpening for stainless steel, aluminium, and mild steel
