Javweld HE Series TIG 200P HF DC PFC LCD

Javweld HE Series TIG 200P HF DC PFC LCD

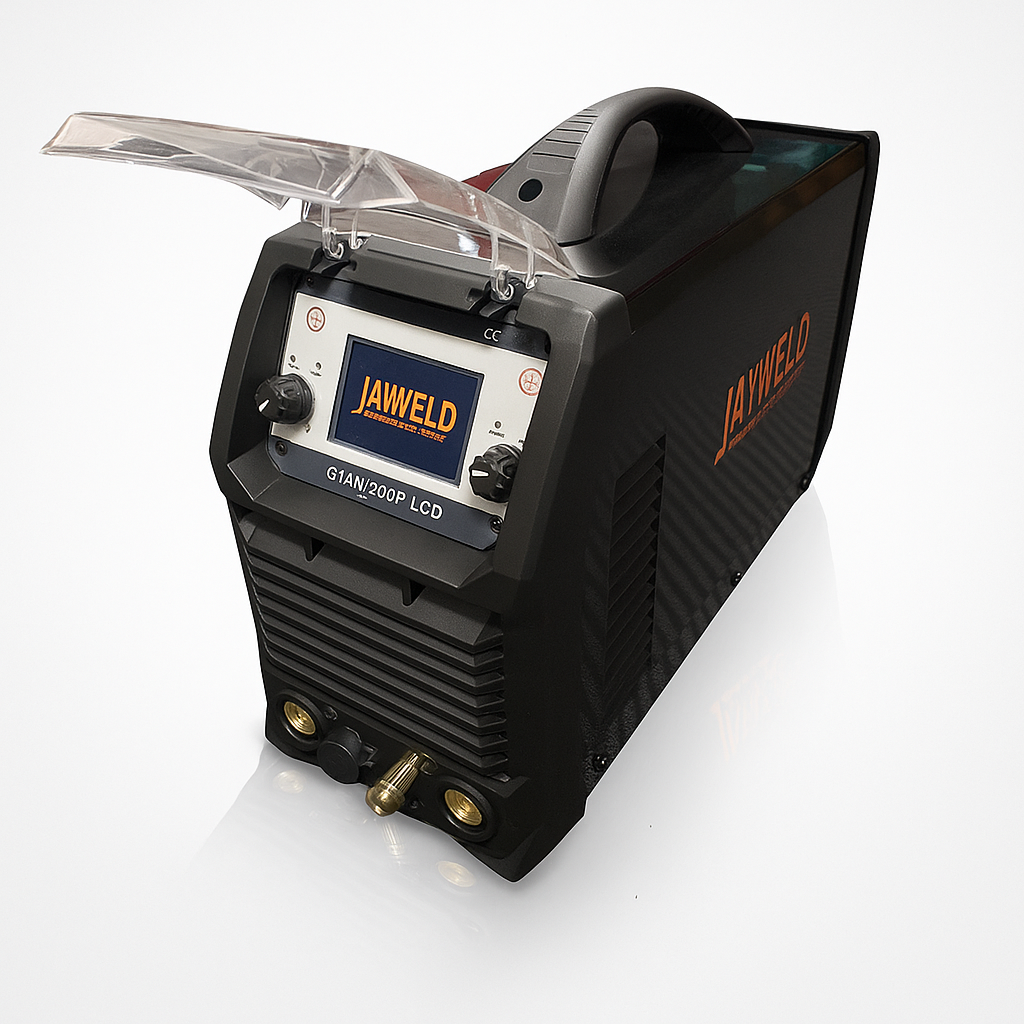

The JavWeld JW-HE-TIG200PLC is a 220V DC pulse TIG and MMA inverter with HF and Lift TIG starting, PFC, and an LCD control screen. It operates from 10-200A with a 40% duty cycle at 200A at 40°C, and the Youngs base listing does not include a TIG torch.

Key Features

• 10-200A output current range
• 40% duty cycle at 200A at 40°C
• DC HF TIG, pulse TIG, Lift TIG, and MMA functions
• 2T, 4T, and manual pulse operation with Job Save
• Q-Start, Dynamic Arc, Multi-tack, hot start, and arc force controls
• 220V input, PFC technology, and 10kg machine weight

Ideal For

• DC pulse TIG welding
• Low-amperage TIG work
• Repeat jobs using saved settings
• Lift TIG and MMA work with the required separate accessories

What is Included

• JavWeld JW-HE-TIG200PLC welding machine
• Earth cable and clamp
