JAVWELD TIG KT230 AC/DC LCD Screen Welder

JAVWELD TIG KT230 AC/DC LCD Screen Welder

The JavWeld JW-HE-KT230 is a 220V AC/DC synergic pulse TIG and MMA system with a 2A low-current start, IPS colour display, and stored programs. It operates from 2-230A with a 60% duty cycle at 230A at 40°C and is supplied with its water cooler and trolley.

Key Features

• 2-230A output current range
• 60% duty cycle at 230A at 40°C
• AC/DC TIG, pulse TIG, and MMA functions
• Square, sine, and triangular AC waveforms with frequency adjustment up to 250Hz

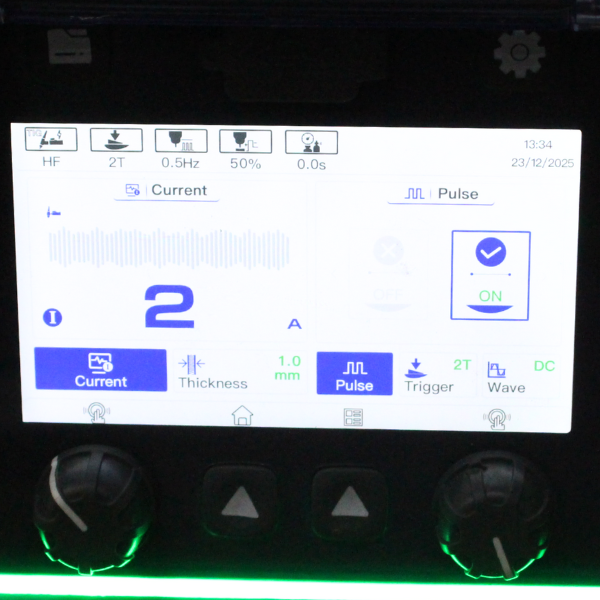

• IPS colour screen with program storage and torch amperage-control capability
• AC/DC Mix, Extra Fusion, Multi-tack, Dynamic Arc, hot start, and arc force controls

Ideal For

• AC and DC TIG welding
• Low-amperage TIG work starting from 2A
• Pulse TIG and repeat programmed setups
• MMA welding with the required separate electrode-holder cable

What is Included

• JavWeld JW-HE-KT230 welding machine
• Earth cable and clamp
• Water cooler
• Trolley
• WP18 or Parker WP18 TIG torch only when the corresponding 4m or 8m torch variant is selected
