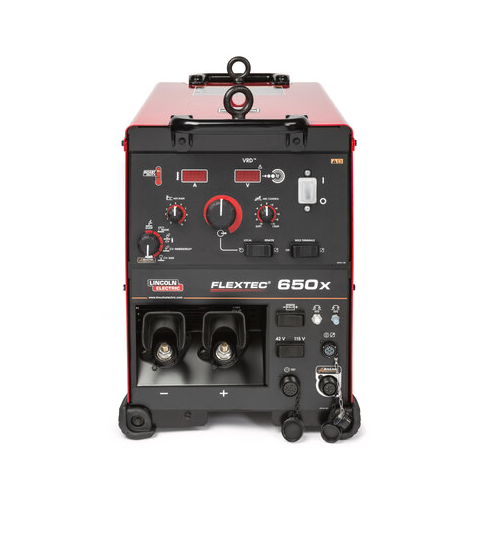

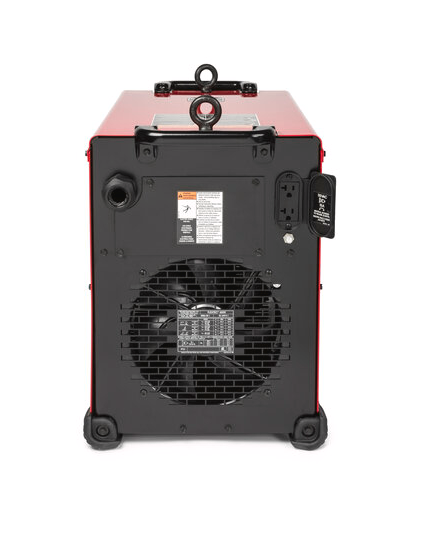

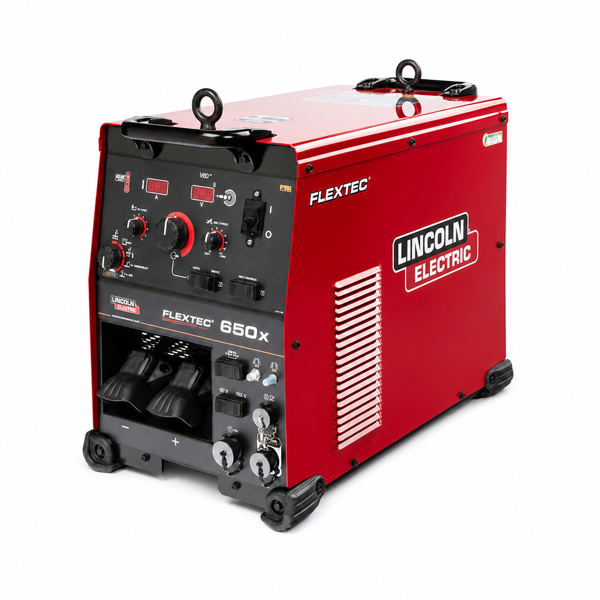

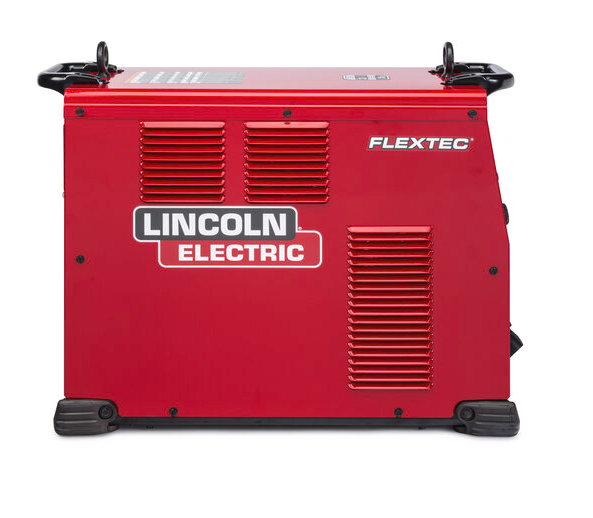

Lincoln Electric FLEXTEC 650X Multi-Process Welder

Serious output, straightforward control and job-site durability in one industrial power source. The Lincoln Electric FLEXTEC® 650X is built for heavy fabrication, construction, shipbuilding, pipeline and repair work where one machine must cover multiple welding processes without slowing production.

Built for demanding production

With premium DC arc performance across MIG, flux-cored, stick, TIG, submerged arc and carbon-arc gouging, the FLEXTEC 650X gives fabrication teams the flexibility to move between jobs while keeping a familiar, simple control layout. Embedded CrossLinc® capability allows compatible remote equipment to adjust welding output at the arc without a separate control cable.

• 650 A at 44 V, 100% duty cycle
• 750 A at 44 V, 60% duty cycle
• 10–815 A output range
• 380/460/575 V, three-phase, 50/60 Hz input
• IP23-rated enclosure for outdoor operation and storage
• Compatible with a wide range of Lincoln Electric wire feeders

Practical advantages

Variable Hot Start and arc control help maintain a confident arc on thick, dirty or difficult material. The rugged enclosure, cool-running internal design and compact footprint support long shifts in harsh industrial environments, while operator-friendly process selection keeps setup clear and repeatable.

Dimensions

Approx. 554 × 410 × 745 mm (H × W × L); net weight approx. 74.8 kg.

Package note: feeder, torch, cables, cart and remote equipment may be optional depending on the selected configuration. Please confirm the exact package, input supply and lead time with Young’s Industrial before ordering.
