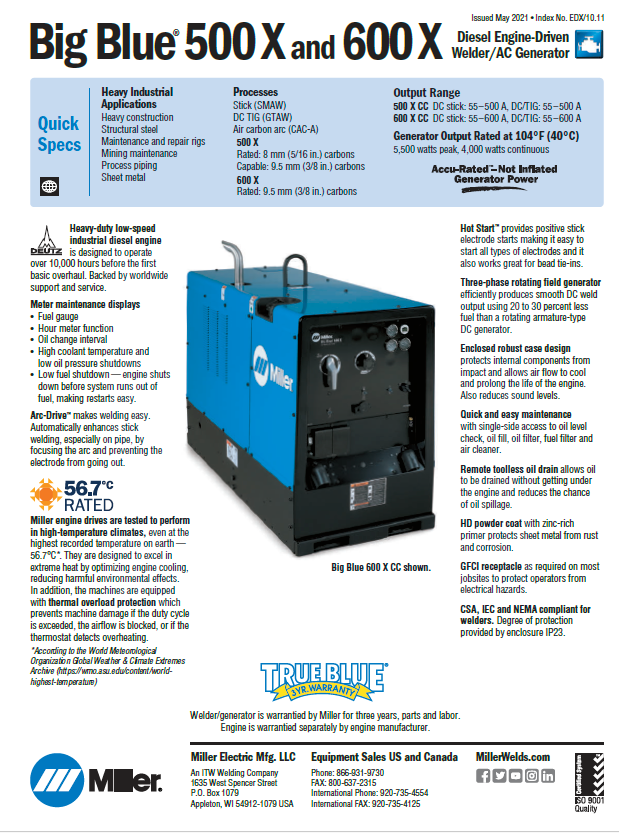

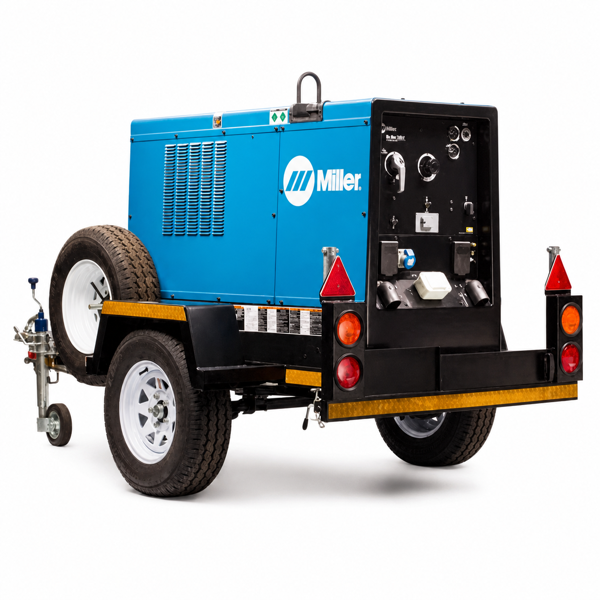

Miller Big Blue 500X CC Diesel Engine-Driven Welder

Dependable diesel welding power for remote, high-demand work. The Miller Big Blue® 500X CC combines a heavy-duty engine-driven DC welding source with job-site generator power for pipeline, construction, mining, structural repair and maintenance applications.

Built for long shifts away from the grid

The constant-current power source is tuned for stick welding, DC TIG and air carbon-arc cutting and gouging. Arc-Drive™ focuses the stick arc to help prevent the electrode from going out, while Hot Start™ supports positive starts and cleaner tie-ins.

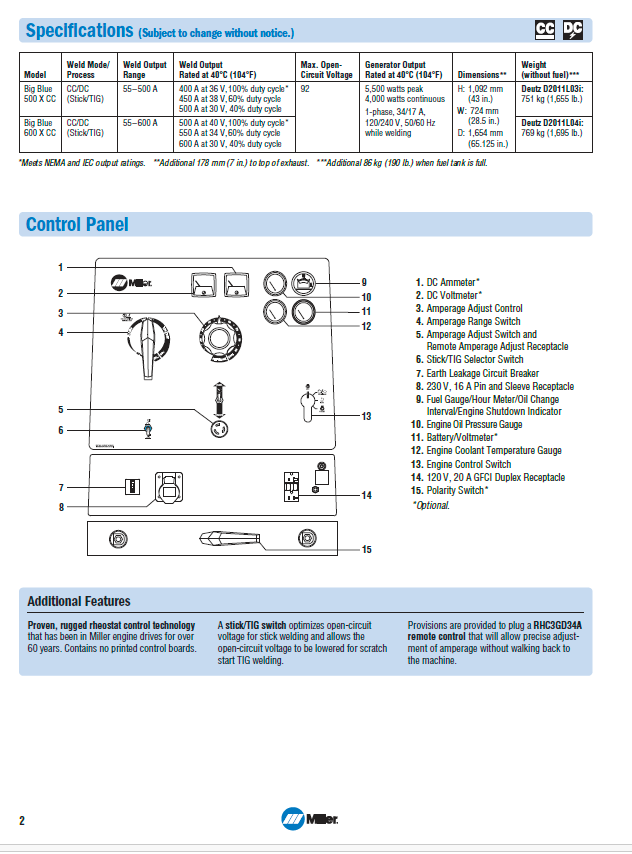

• 55–500 A DC welding range
• 400 A at 36 V, 100% duty cycle
• 450 A at 38 V, 60% duty cycle
• 500 A at 30 V, 40% duty cycle
• Rated for carbon electrodes up to 8 mm
• 5,500 W peak / 4,000 W continuous auxiliary generator power
• 120/240 VAC auxiliary output

Fleet-ready durability

The enclosed case protects internal components from impact, controls airflow for cooling and helps reduce sound. Automatic high-coolant-temperature, low-oil-pressure and low-fuel shutdown functions protect the engine, while single-side service access simplifies routine maintenance.

Configuration

The listed CE configuration is associated with a Perkins 404D-22 industrial diesel engine. Approximate machine weight is 732 kg; confirm the current supplied engine and final transport mass before ordering.

Lead-time note: source availability indicates an estimated 12–14 week lead time from cleared payment. Welding leads, remote controls, trailers and other accessories may be optional; confirm the final package, availability and lead time with Young’s Industrial.
