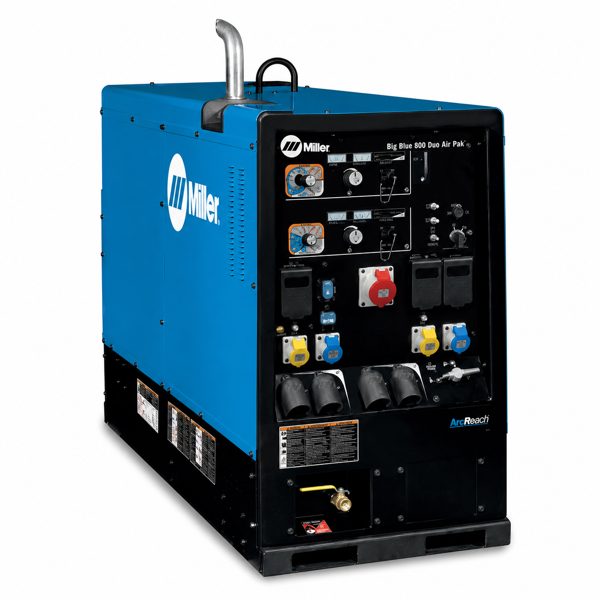

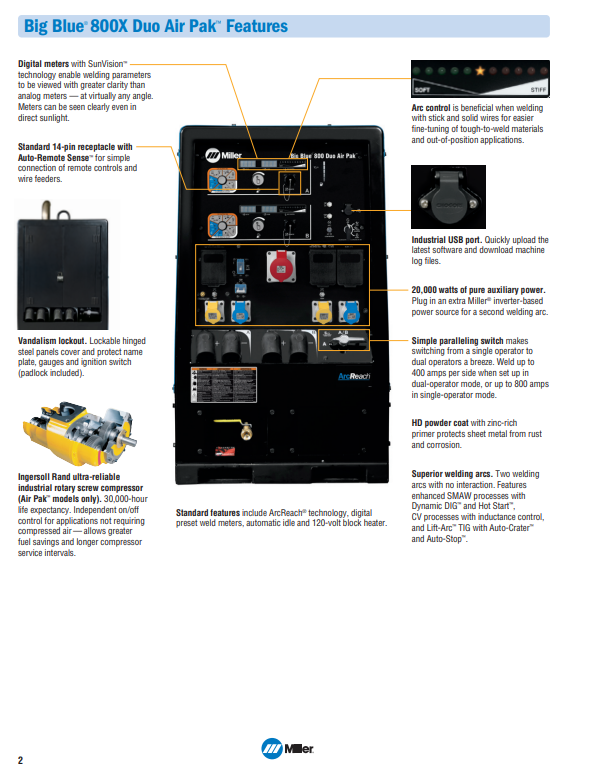

Miller Big Blue 800X Duo Air Pak Diesel Engine-Driven Welder

One diesel work platform for two welding arcs, site power and compressed air. The Miller Big Blue® 800X Duo Air Pak™ is built for labour-intensive construction, mining, pipe, rail and maintenance work where space, transport and uptime are critical.

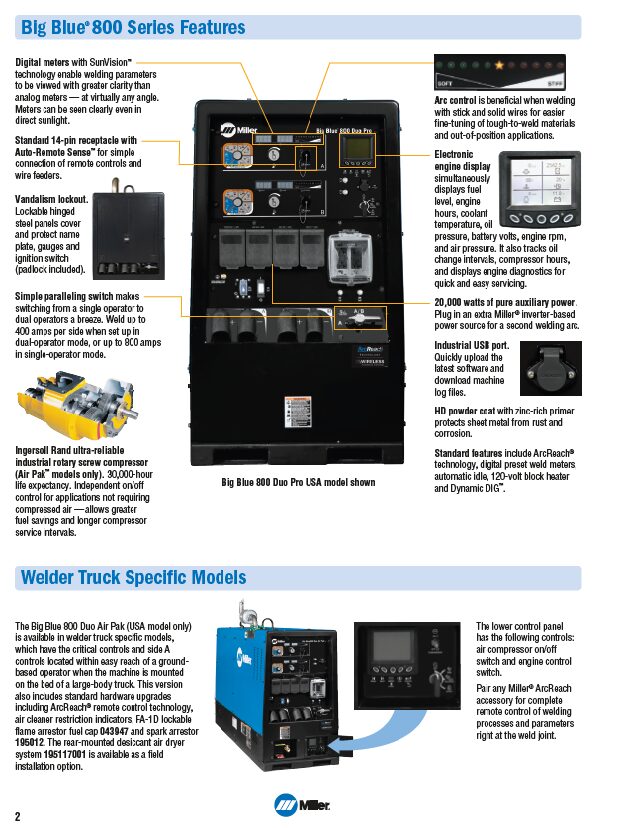

Two operators, one machine

Run two independent welding arcs at up to 400 A each, or combine the outputs for up to 800 A for one operator. The integrated industrial screw-type air compressor removes the need to tow a separate compressor, while substantial auxiliary power supports tools and additional job-site equipment.

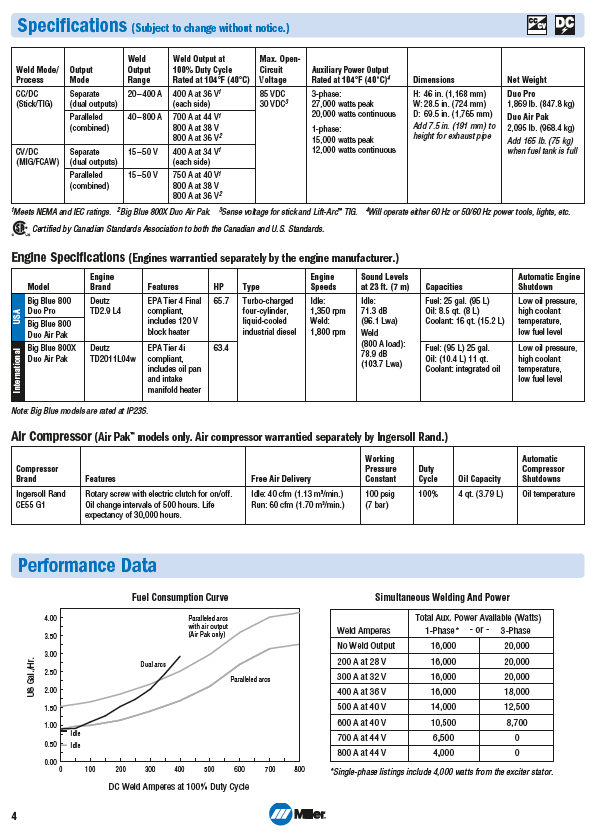

• Single-output range: 40–800 A CC or 15–50 V CV
• Dual-output range: 20–400 A CC per side or 15–50 V CV
• 20,000 W continuous three-phase auxiliary power
• 12,000 W continuous single-phase auxiliary power
• Stick, MIG, flux-cored, DC TIG, submerged arc and carbon-arc gouging capability
• RMD® and pulsed MIG capability with a compatible ArcReach® Smart Feeder
• Rated for carbon electrodes up to 13 mm

All-in-one field productivity

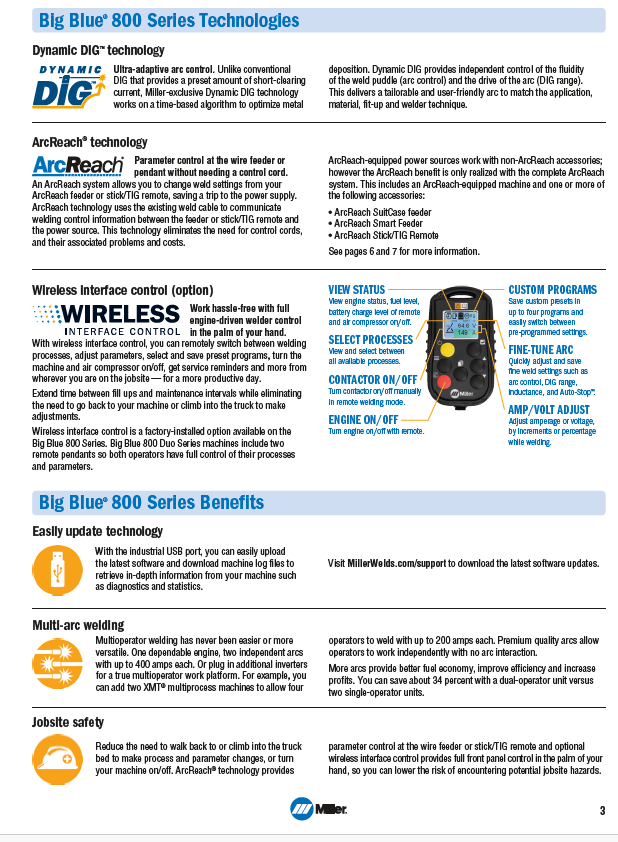

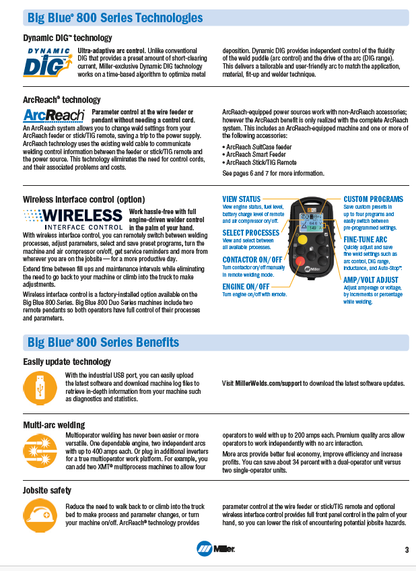

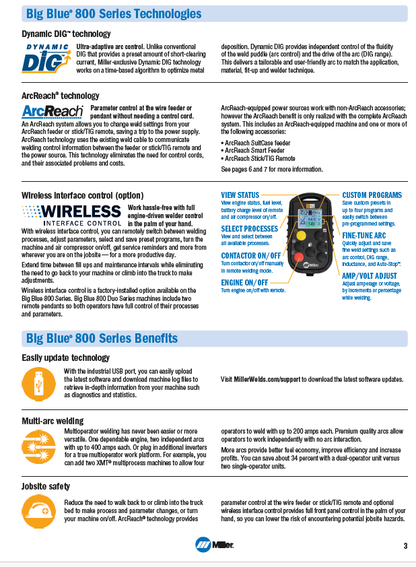

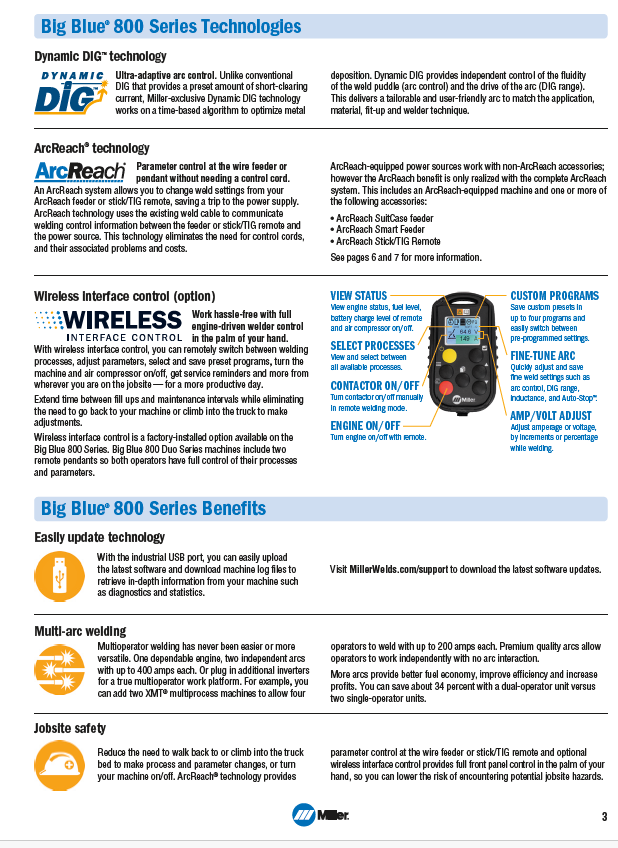

ArcReach-compatible controls allow welding parameters to be adjusted closer to the work without a separate control cord. Low-OCV stick operation improves job-site safety when the power source is idle, and the low-speed industrial diesel engine is designed for long service in remote, high-demand environments.

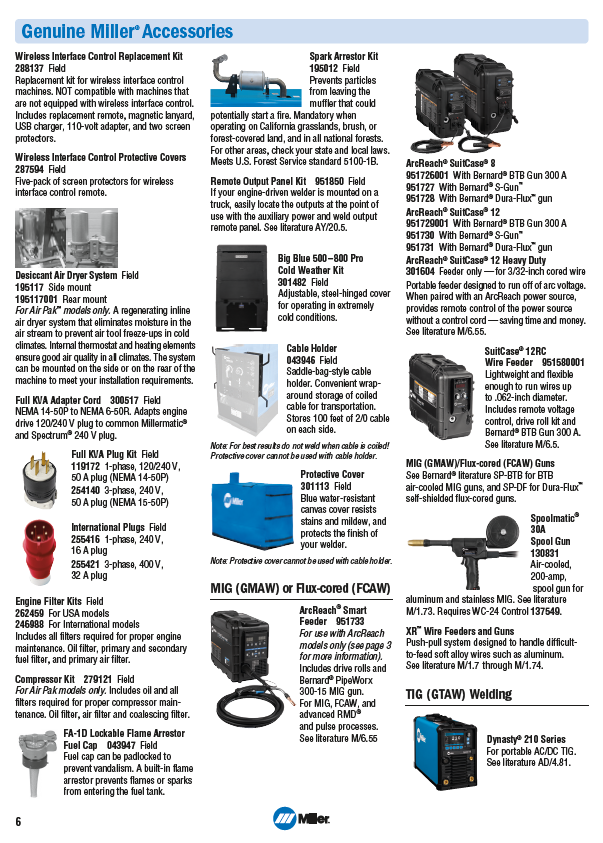

Package note: wire feeders, remotes, welding leads, plasma equipment, air tools and other accessories may be optional. Confirm the exact engine, compressor configuration, electrical outputs, package contents, transport requirements, availability and lead time before ordering.
