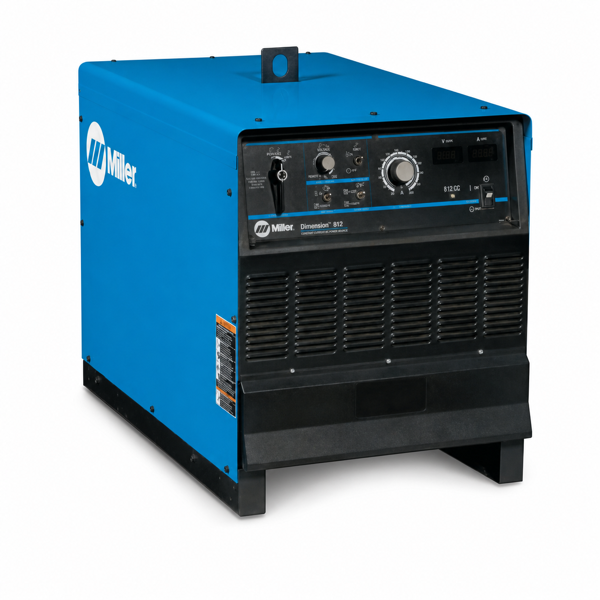

Miller Dimension 812 Multi-Process Welder (907361)

A proven heavy-industrial power source for high-deposition welding and extended arc-on time. The Miller Dimension™ 812 is designed for fabrication, mining, shipbuilding, structural steel and maintenance operations that need dependable multi-process performance at a true 100% duty cycle.

High-output industrial performance

The Dimension 812 supports MIG, flux-cored, stick and TIG welding, plus air carbon-arc cutting and gouging. Its broad CC/CV output range lets one power source cover thick-section fabrication, repair and production work with stable, repeatable arc performance.

• 650 A at 44 VDC, 100% duty cycle
• CC output range: 50–815 A
• CV output range: 10–65 V
• 380/400/440 V, three-phase, 50 Hz input
• IP23S protection rating
• Rated for carbon-arc gouging with carbons up to 12 mm

Designed to keep working

Line-voltage compensation helps maintain consistent weld performance when incoming power varies. Fan-On-Demand™ reduces unnecessary fan noise and limits the amount of dust drawn through the machine. Clear digital meters display preset and actual voltage and amperage, while built-in stick arc control helps operators fine-tune the arc in difficult positions.

Dimensions and weight

Approx. 762 × 585 × 966 mm (H × W × D); net weight approx. 247 kg.

Package note: source pricing indicates a cable set is included. Wire feeder, MIG gun, TIG equipment, running gear and other accessories may be sold separately. Confirm the exact package, electrical requirements, availability and lead time before ordering.
