Pinnacle MIGARC 195 140A Multi-Process MIG / MMA / Lift TIG Welder

Product Overview

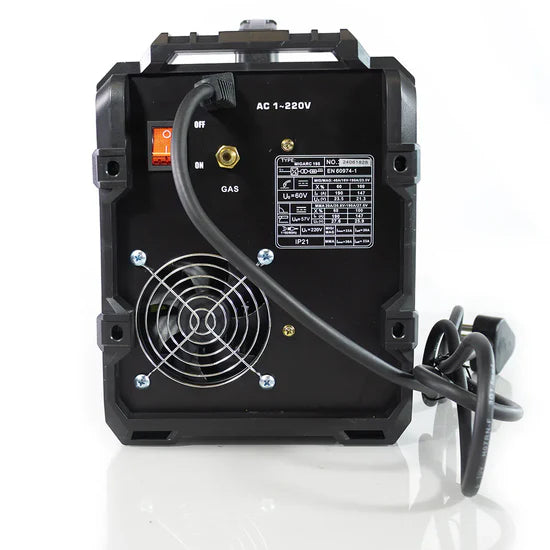

The Pinnacle MIGARC 195 is a 140 amp multi-process inverter welder for gas-shielded MIG, gasless MIG, MMA, and optional Lift TIG work. This Youngs-listed revision operates from a single-phase 220V supply and uses an internal wire feeder for spools up to 5kg.

Key Features

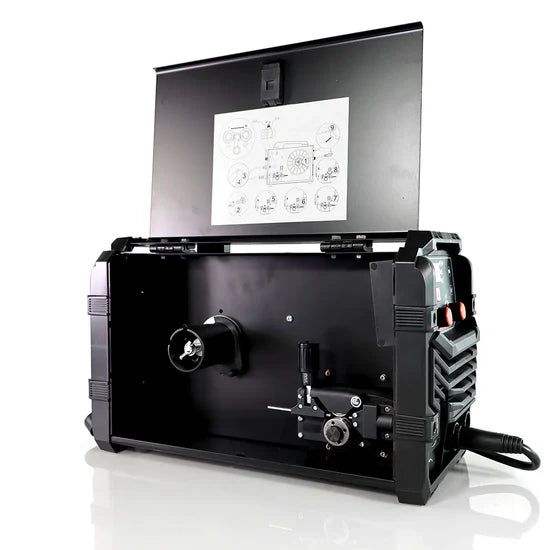

• Internal wire feeder for spools up to 5kg

Suitable Applications

• Gas-shielded and gasless MIG fabrication
• Workshop repair and maintenance
• MMA welding with compatible electrodes
• Optional Lift TIG work with the required separate equipment

Technical Specifications

• 20-140A gas-shielded MIG output range
• 40-140A gasless MIG output range
• 20-140A MMA output range
• Supports 0.6mm, 0.8mm, and 0.9mm welding wire

Package Includes

• Pinnacle MIGARC 195 Welding Machine
