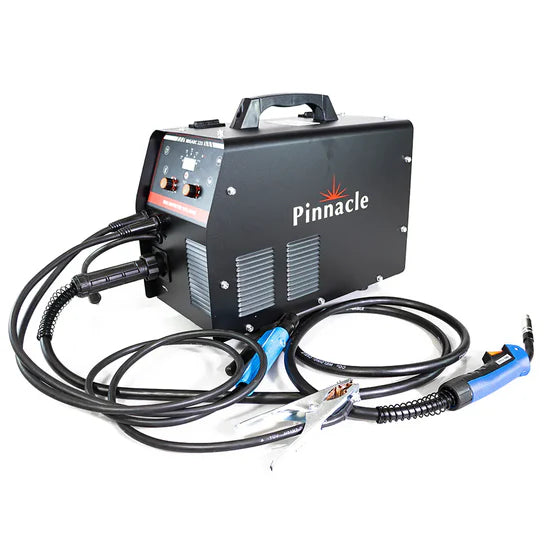

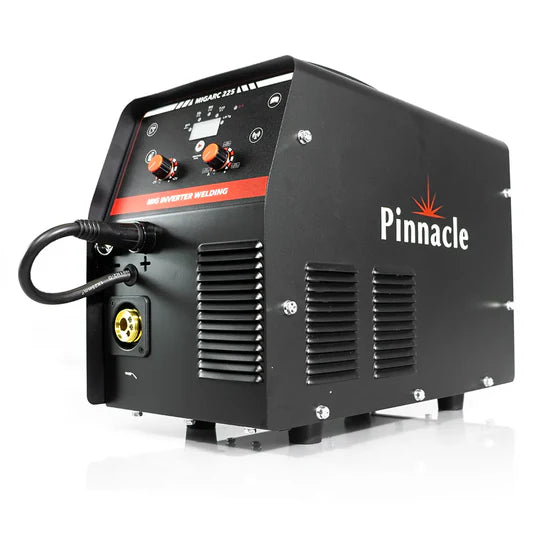

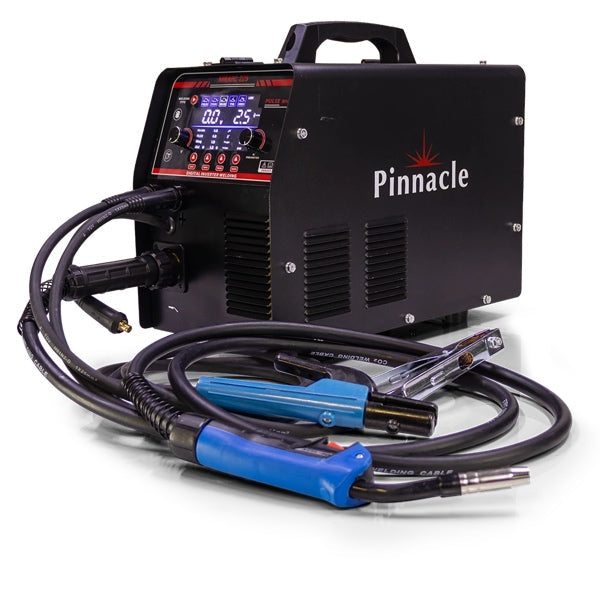

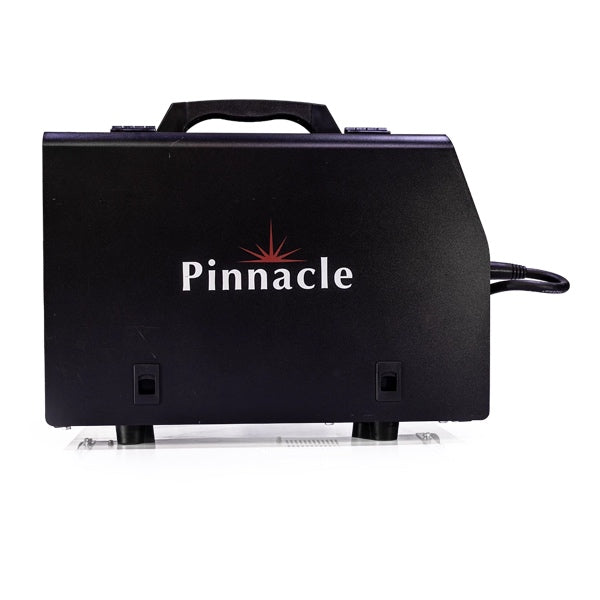

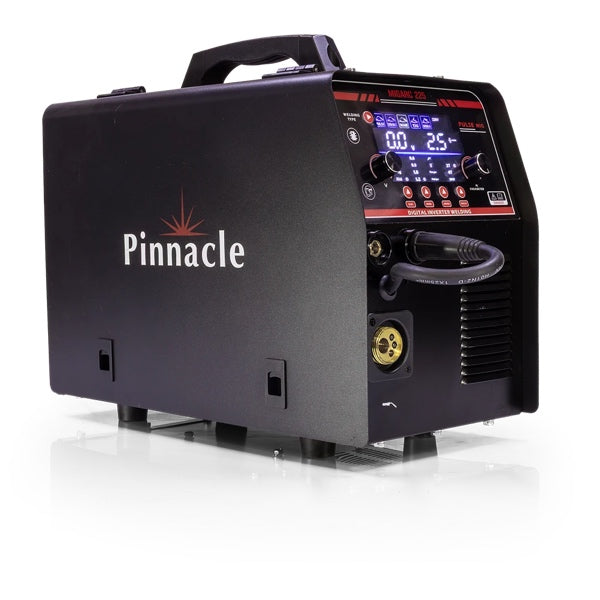

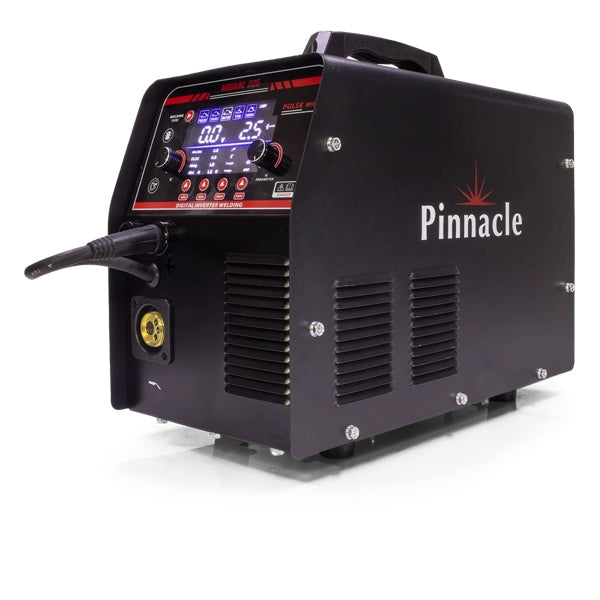

Pinnacle MIGARC 225 Pulse MIG / MMA Multi-Process Welder – 5 kg / 15 kg Spools

Product Overview

The Pinnacle MIGARC 225 5kg/15kg Pulse MIG/ARC Welding Machine is a compact multi-process welding inverter designed for MIG, Pulse MIG, ARC, and Lift TIG welding applications. Built with IGBT inverter technology, it provides stable welding performance in a smaller and more practical machine body.

This model supports both 5kg and 15kg welding wire spools, making it suitable for users who need flexibility between smaller workshop jobs and higher-volume welding tasks. With a welding current range of 30–200A, digital display control, and support for gasless MIG welding, the MIGARC 225 is a practical choice for DIY users, workshops, maintenance work, and light industrial welding environments.

The machine is suitable for users looking for a compact Pulse MIG welding machine that can also handle standard MIG and ARC welding. It is designed to provide reliable performance for general fabrication, repair work, farm maintenance, garage use, and workshop welding.

Key Features

• Multi-process welding machine for MIG, Pulse MIG, ARC, and Lift TIG welding
• IGBT inverter technology for efficient and stable welding performance
• Welding current range: 30–200A

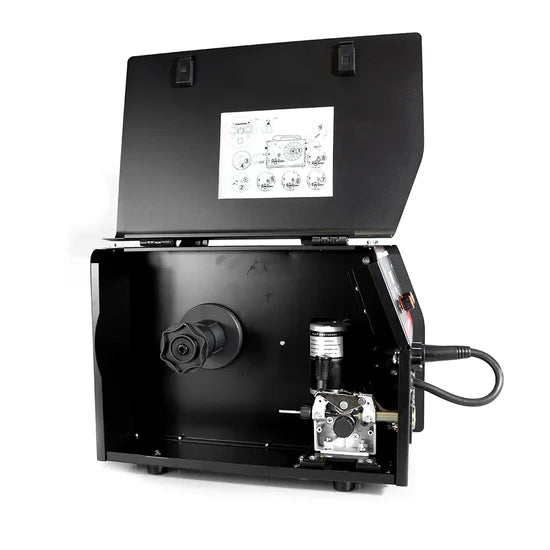

• Compatible with 5kg and 15kg wire spools
• Supports 0.8mm, 0.9mm, 1.0mm and 1.2mm MIG welding wire
• Suitable for 2.0mm, 2.5mm, and 3.2mm electrodes

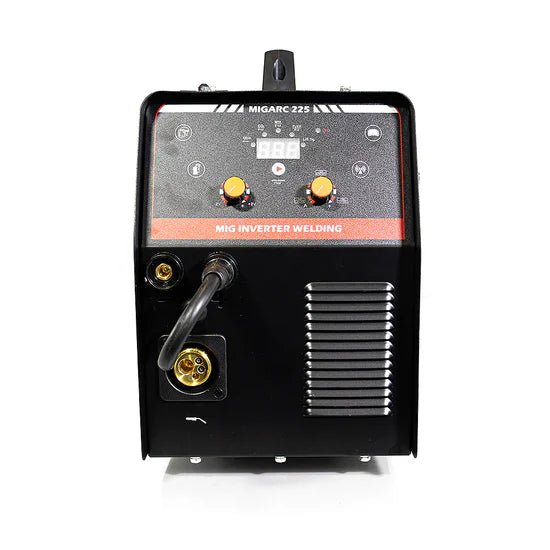

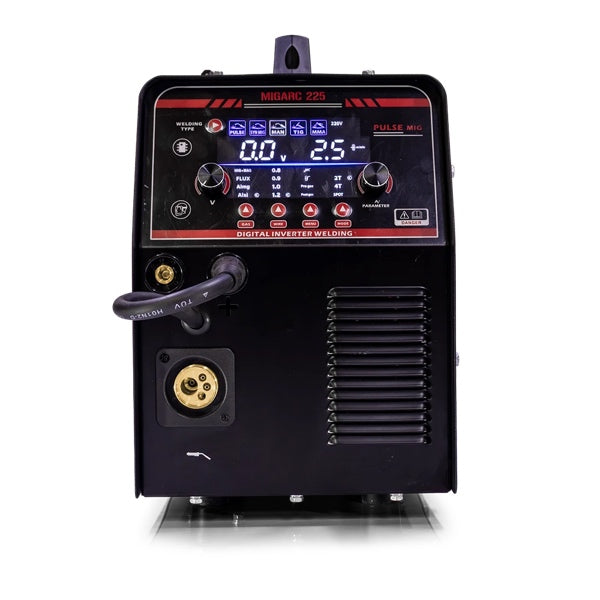

• Digital display for easier setup and adjustment
• Gasless MIG welding capability

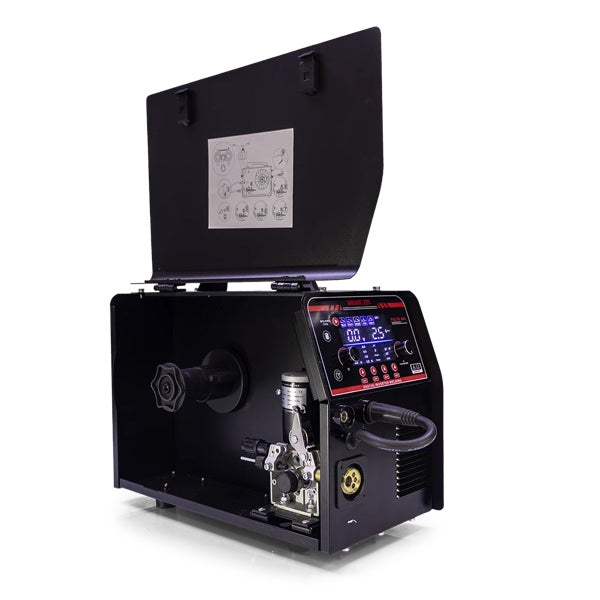

• Internal wire feeder
• Compact design for workshop, garage, farm, and light industrial use

Suitable Applications

• DIY welding projects
• Workshop fabrication
• Garage repairs
• Farm maintenance
• Light industrial welding
• General steel repair and fabrication work
• MIG, Pulse MIG, ARC, and Lift TIG welding tasks

Technical Specifications

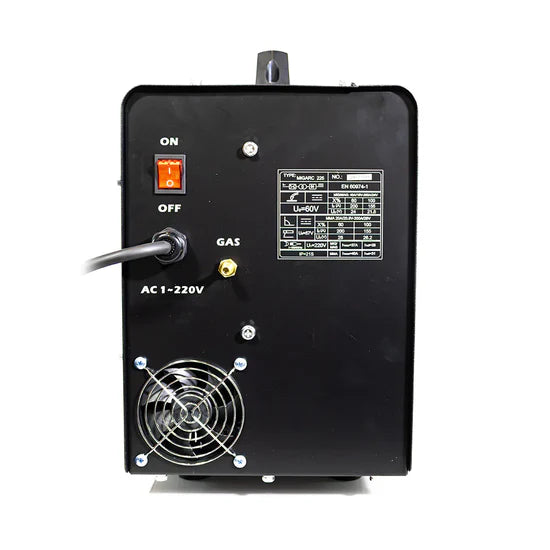

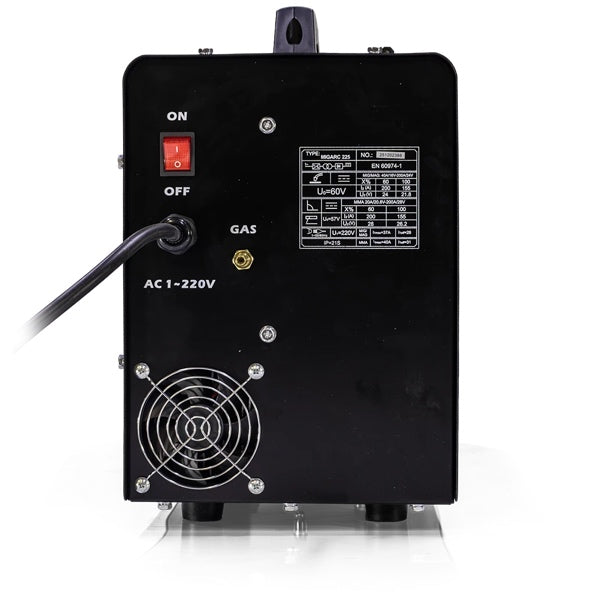

• Rated input voltage: AC 220V ±10%
• Rated frequency: 50/60Hz
• Input current: 37A
• Welding current range: 30–200A
• Rated duty cycle: 60%
• Rated power capacity: 8.7kVA
• Wire size: 0.8mm / 0.9mm / 1.0mm / 1.2mm
• Electrode size: 2.0mm / 2.5mm / 3.2mm
• Wire feeder: Internal
• Spool size: 5kg / 15kg
• Dimensions: 540 x 305 x 425mm
• Weight: 17.9kg

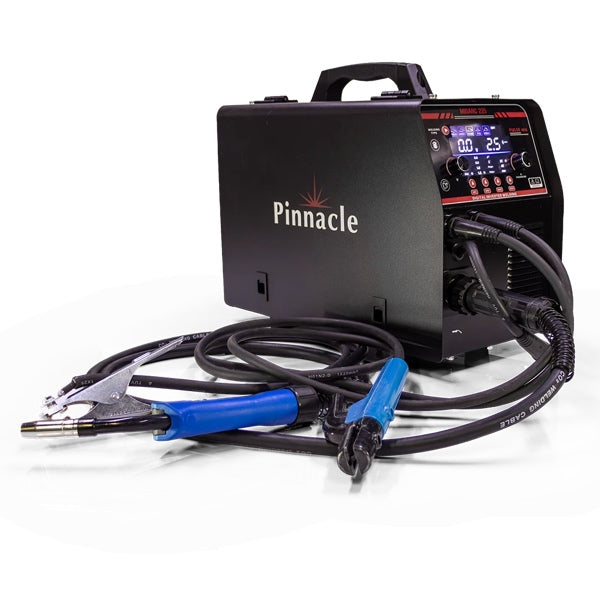

Package Includes

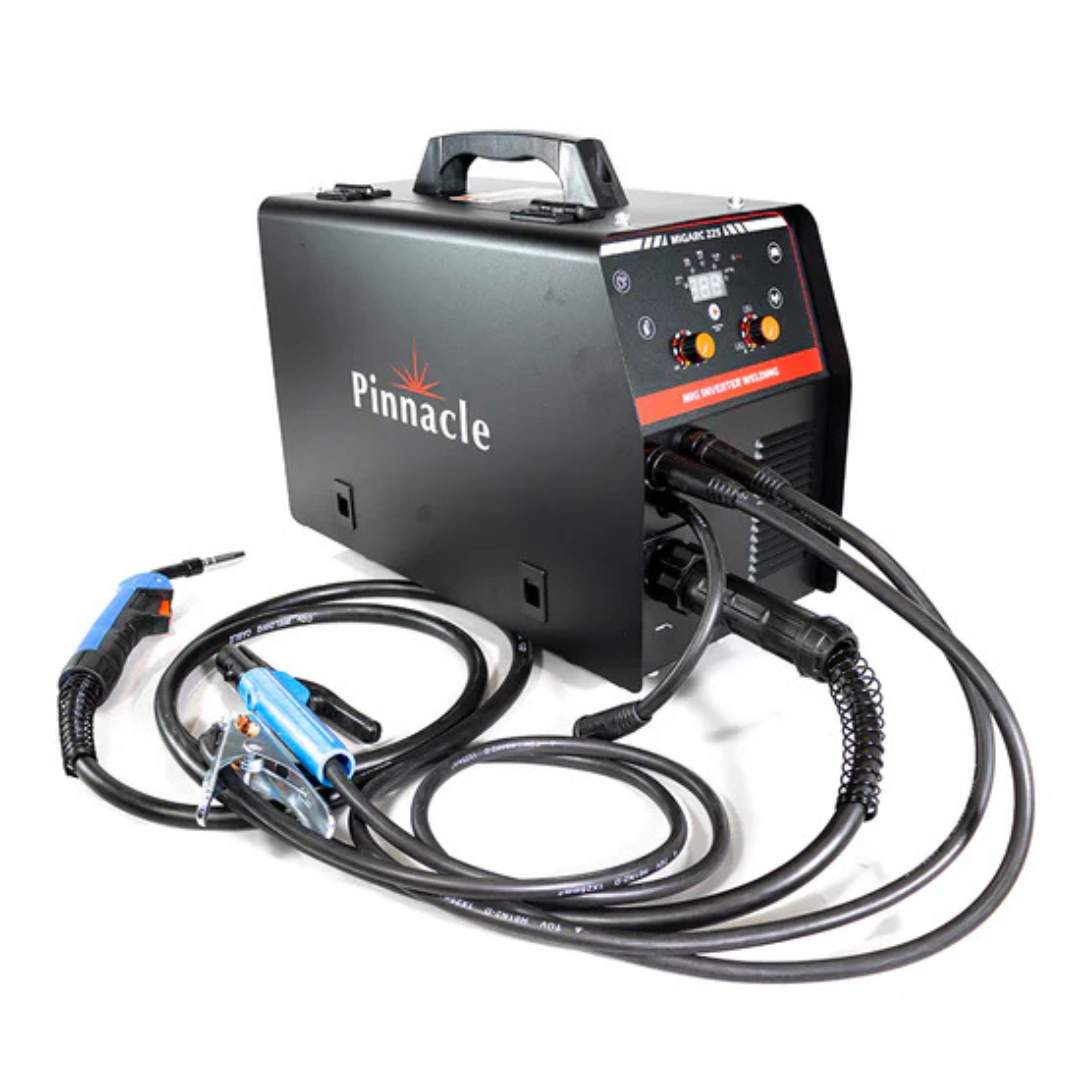

• MIG torch
• ARC and earth cable set
• Spare contact tips
• Steel liner
  Teflon Liner



Compact Pulse MIG Welding Power

The Pinnacle MIGARC 225 combines Pulse MIG functionality with standard MIG and ARC welding capability in a compact inverter platform. Its 5kg and 15kg spool compatibility gives users more flexibility when moving between smaller repair jobs and longer welding sessions.
