Pinnacle PROTIG AC/DC 200 – 200A Aluminium TIG & MMA Welder, 220V (Non-Pulse)

Product Overview

The Pinnacle PROTIG AC/DC 200 is a 200A non-pulse TIG and MMA inverter welder for aluminium, mild steel and stainless-steel fabrication. AC TIG mode provides the cleaning action required for aluminium welding, while DC TIG mode delivers a controlled, stable arc on steel and stainless steel.

Running from a 220V single-phase supply, this machine offers a 10–200A output range, high-frequency arc starting and adjustable post-flow control. It also includes MMA/ARC capability for electrode welding and a foot control for hands-free adjustment while TIG welding.

Important: This is the standard non-pulse PROTIG AC/DC 200. It does not have a pulse TIG function and is separate from the PROTIG 200P AC/DC Pulse model.

Key Features

• AC/DC TIG and MMA/ARC welding processes
• 10–200A adjustable output range
• 220V single-phase input supply
• AC TIG mode for aluminium welding
• DC TIG mode for mild steel and stainless steel
• High-frequency, non-contact TIG arc starting
• 60% duty cycle at 200A
• Adjustable post-flow gas control
• Arc-force control for MMA welding
• Supports 1.6–4.0mm MMA electrodes
• IGBT inverter technology
• Included foot control
• IP21S protection and Class H insulation
• Compact format for workshop and site work

Suitable Applications

• Aluminium trailers, tanks and bodywork
• Aluminium repair and fabrication
• Stainless-steel gates, railings and components
• Mild-steel TIG fabrication
• Automotive and general workshop repairs
• MMA/ARC welding with suitable electrodes

Technical Specifications

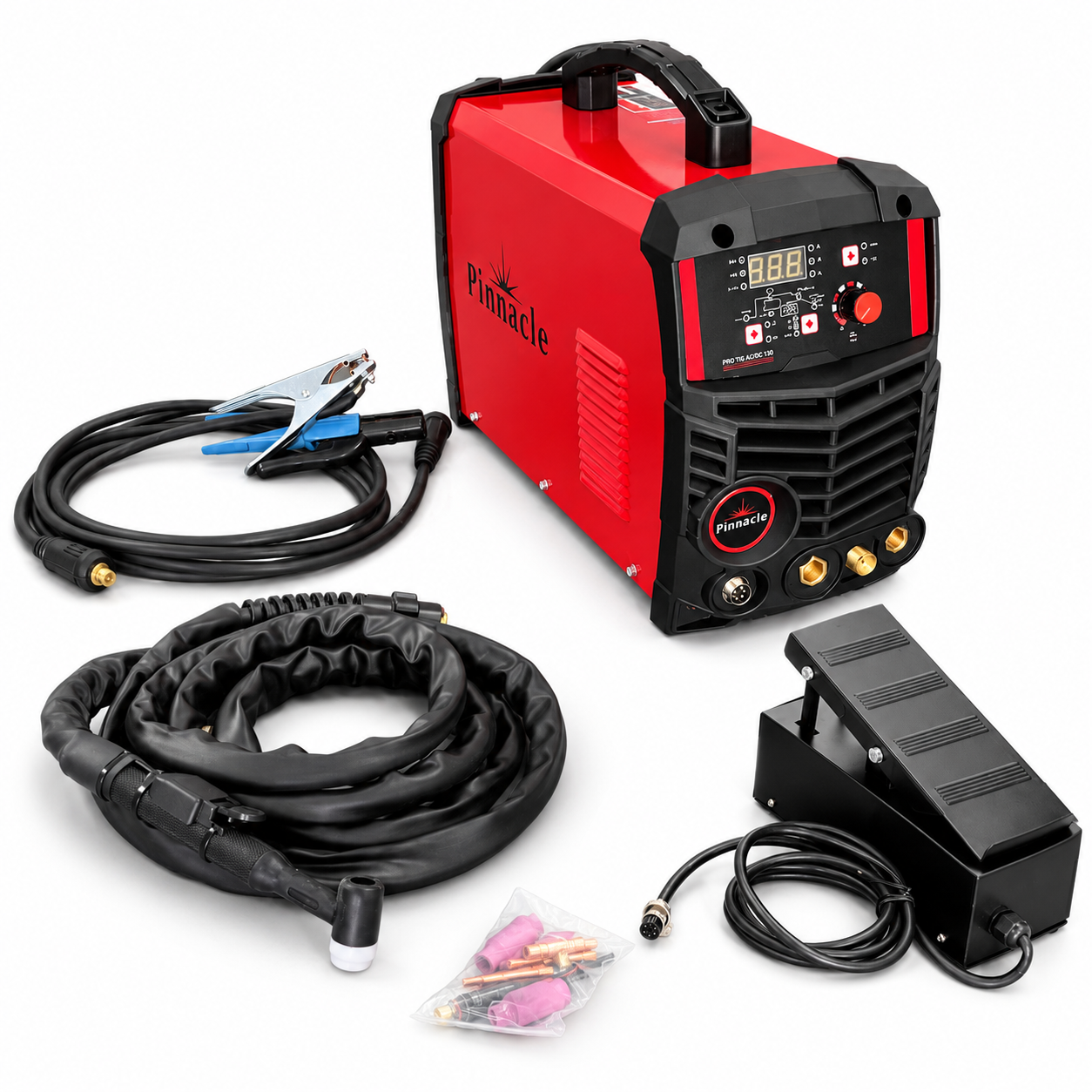

Package Includes

• 1 × Pinnacle PROTIG AC/DC 200 inverter welder

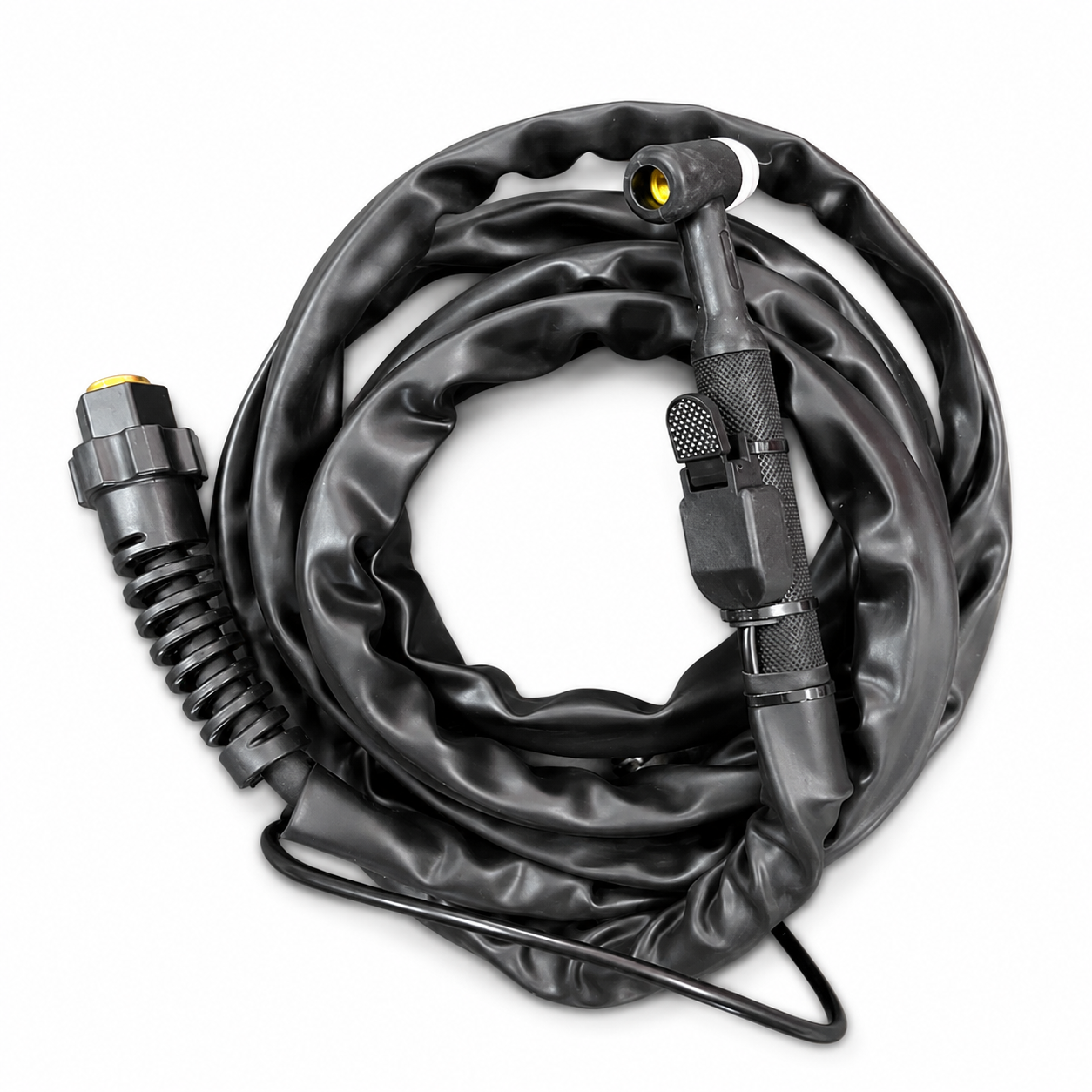

• 1 × High-frequency TIG torch with hose assembly

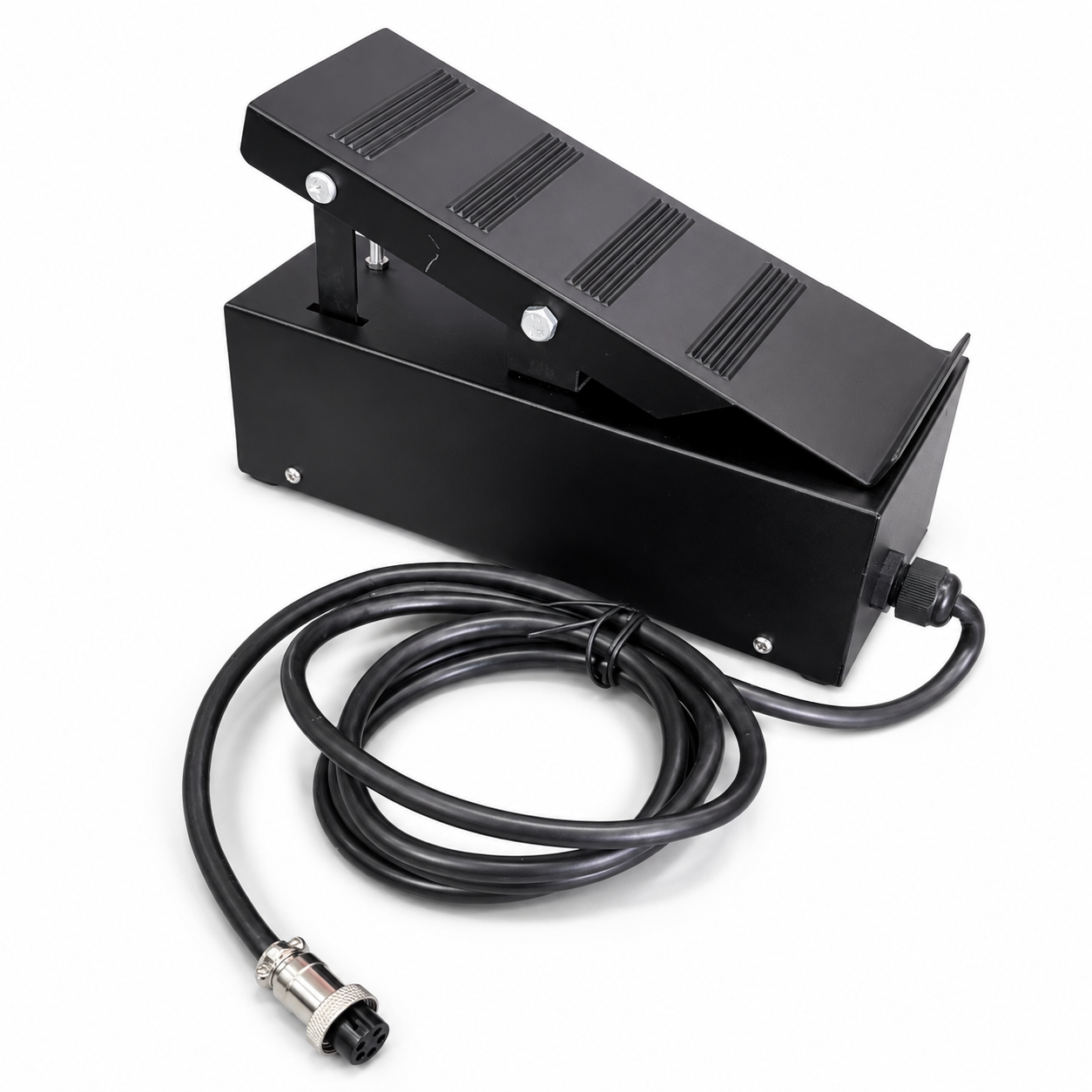

• 1 × Foot control

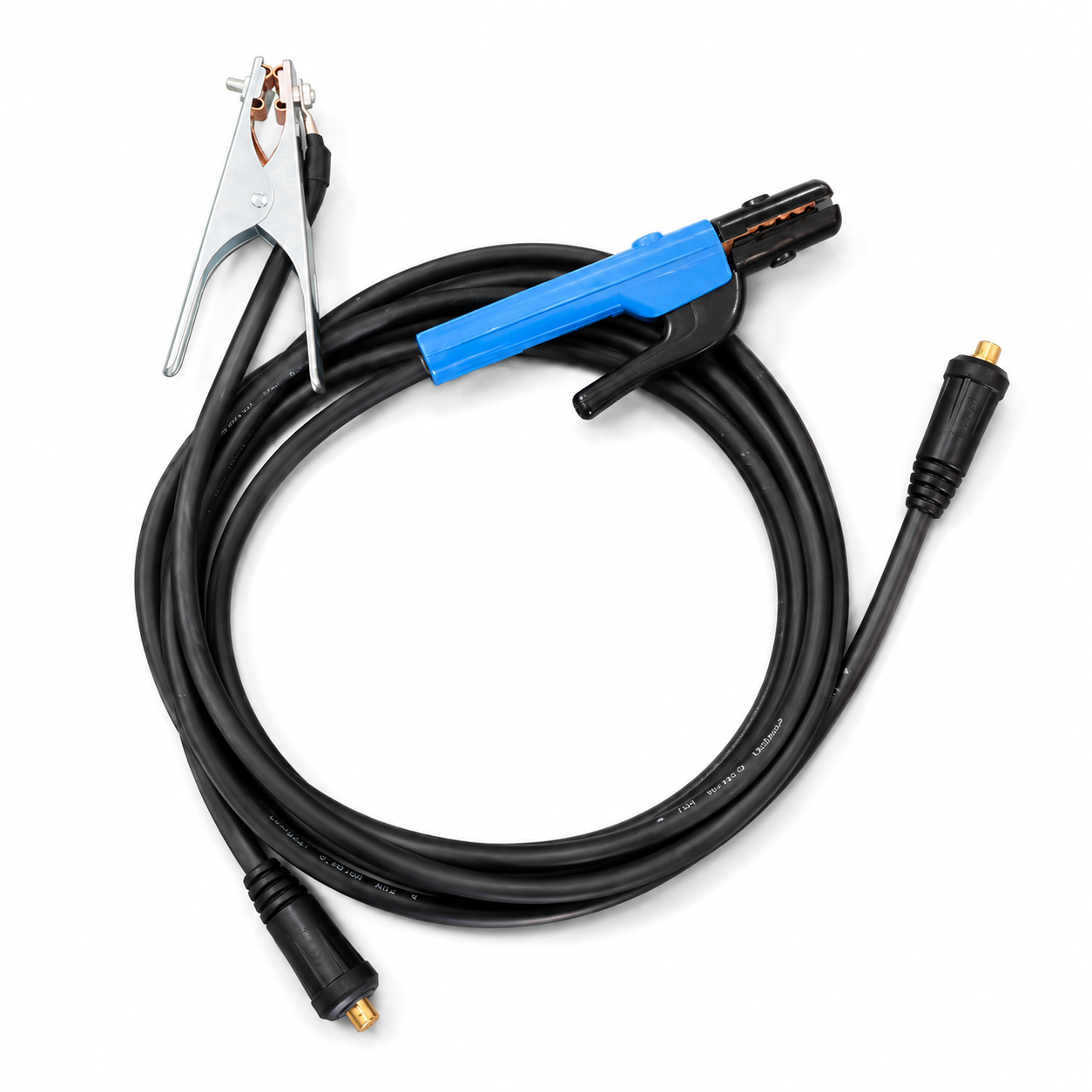

• 1 × MMA electrode-holder lead
• 1 × Earth-clamp lead

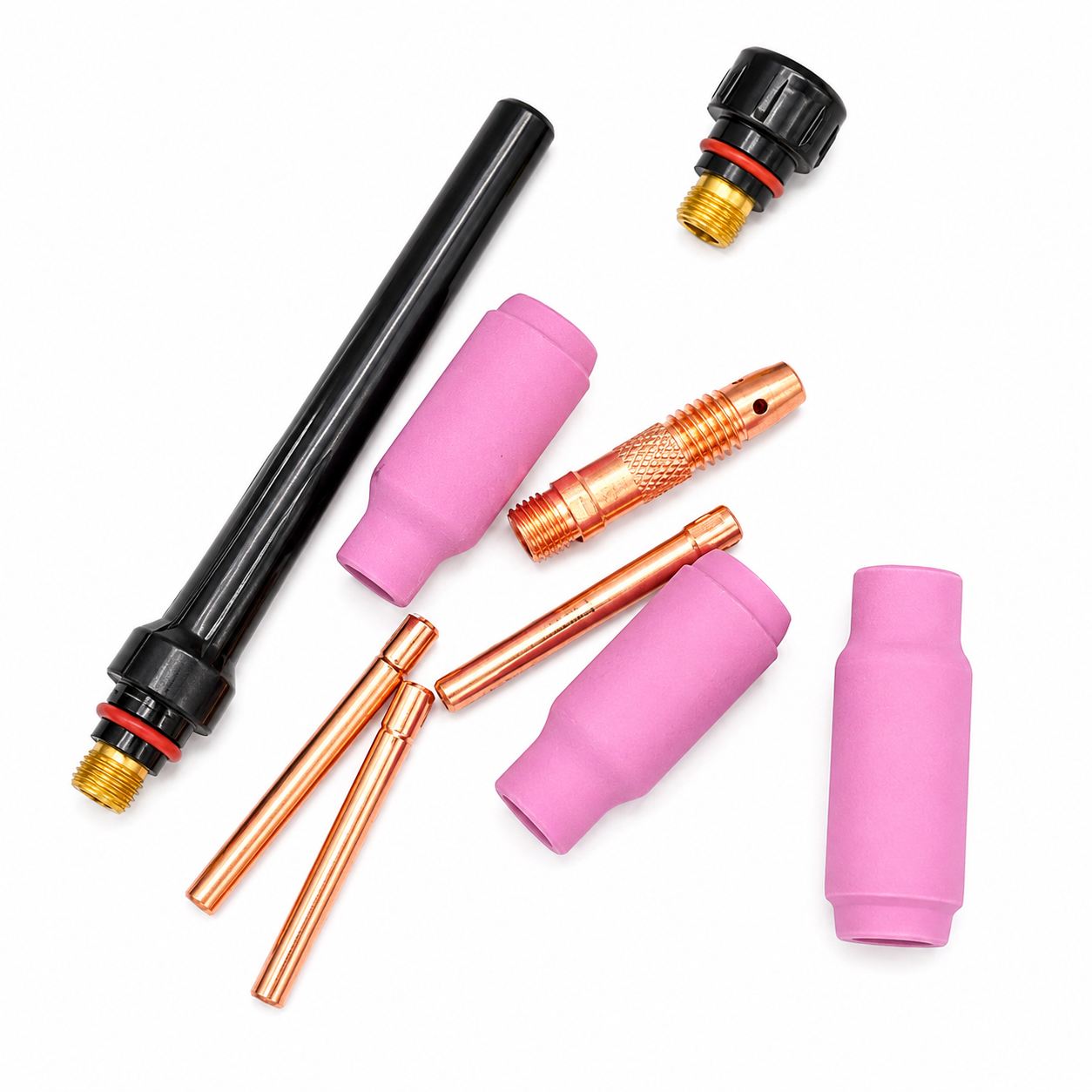

• 1 × TIG torch consumables starter pack

Please note: An argon cylinder, regulator or flowmeter, TIG filler rods and welding PPE are not included.
