Pinnacle Xtreme Smart 200A Multi-Process MIG / HF TIG / MMA Welder

Pinnacle Xtreme Smart 200A Multi-Process Welder

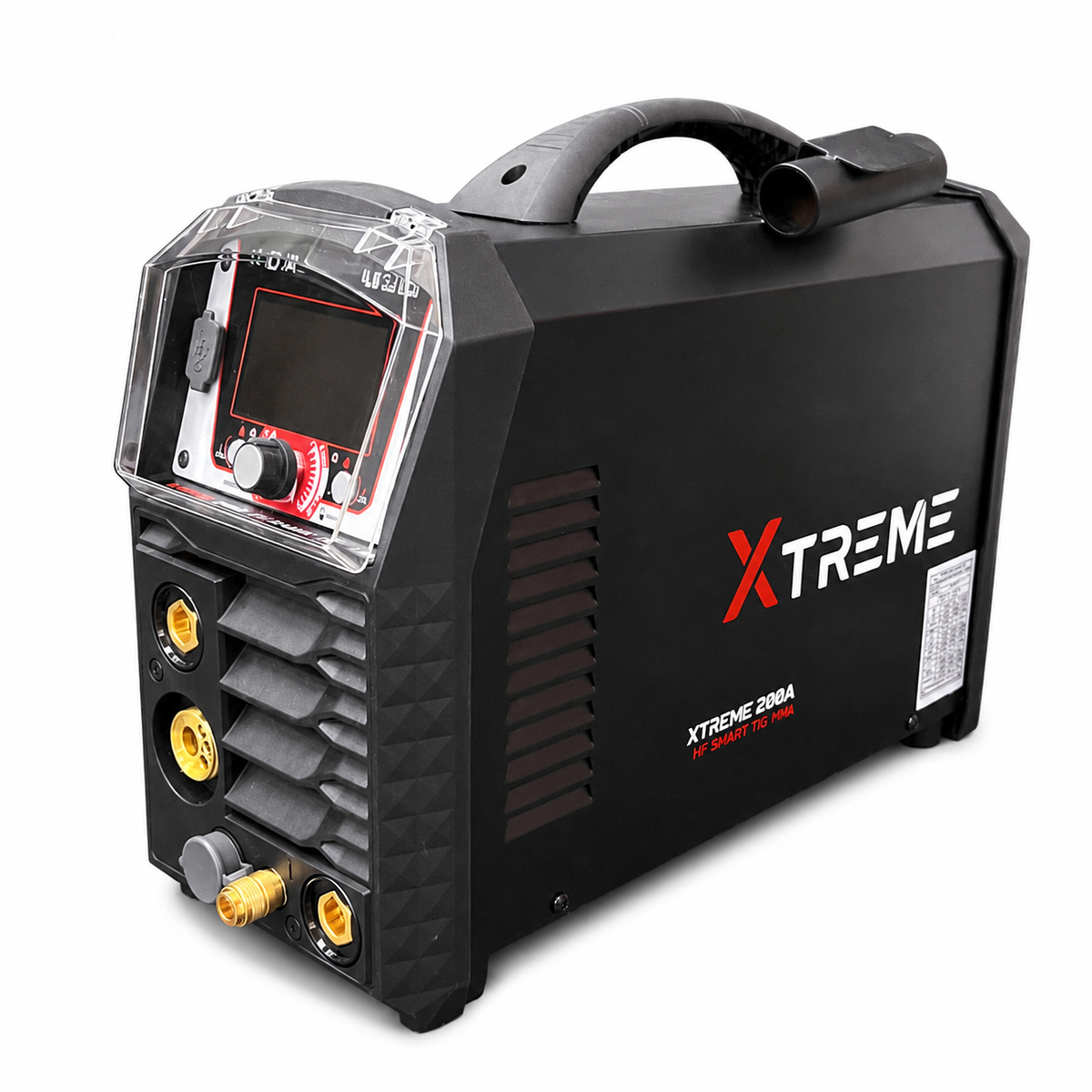

The Pinnacle Xtreme Smart 200A is a 230 V single-phase multi-process welding machine for gas MIG/MAG, polarity-change gasless flux-core MIG, DC HF TIG, Lift TIG and MMA/Stick welding. The 4-inch full-colour IPS display and synergic MIG setup help you set the machine up quickly, while digital parameter control gives you adjustment when the job needs it.

It has a built-in 5 kg wire-spool compartment, PFC technology and an integrated carry handle for workshop, repair and fabrication work. This is a DC TIG machine: it is suitable for mild steel and stainless steel TIG work, but it is not an AC TIG machine for aluminium.

Key features

• Gas MIG/MAG, gasless flux-core MIG, DC HF TIG, Lift TIG and MMA/Stick welding.
• Up to 200 A output on a 230 V single-phase supply.
• Synergic MIG setup with digital parameter adjustment.
• HF non-contact TIG start and Lift TIG start.
• Pulse TIG controls for frequency, pulse width, slope and gas timing.

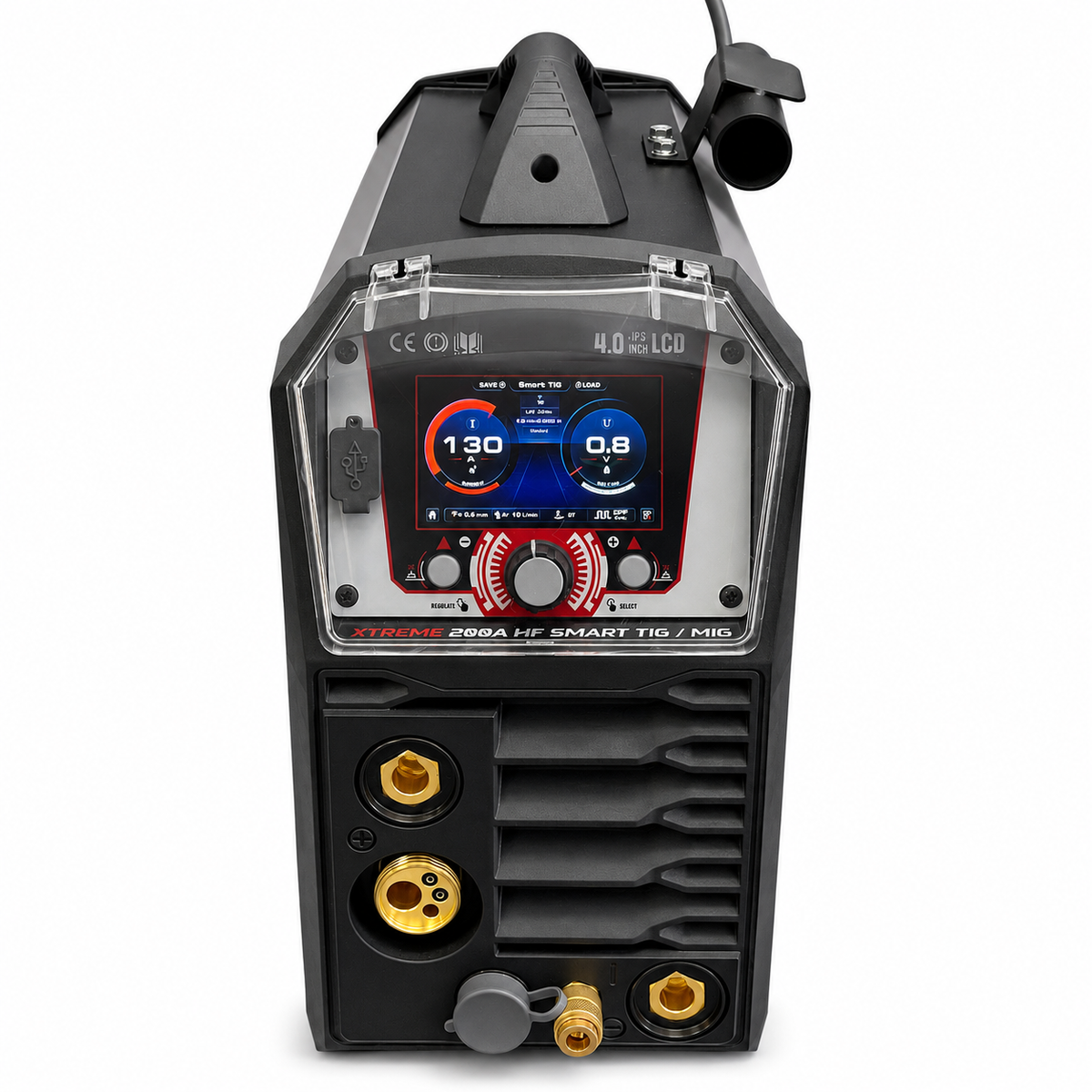

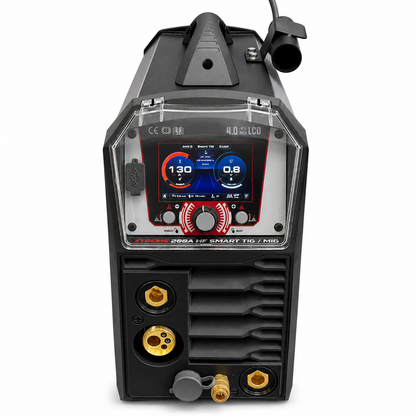

• 4-inch full-colour IPS LCD with digital menus and welding parameters.
• Built-in 5 kg wire-spool compartment.
• PFC technology, smart fan control and temperature, voltage and current protection.

Wire and spool capacity

• Internal spool capacity: up to 200 mm / 5 kg.
• Mild-steel wire: 0.6 mm, 0.8 mm, 0.9 mm and 1.0 mm.
• Stainless-steel wire: 0.8 mm, 0.9 mm and 1.0 mm.
• Flux-cored wire: 0.8 mm, 0.9 mm and 1.0 mm.
• CuSi wire: 0.8 mm, 0.9 mm and 1.0 mm.
• Aluminium MIG welding requires an optional spool gun.

Technical specifications

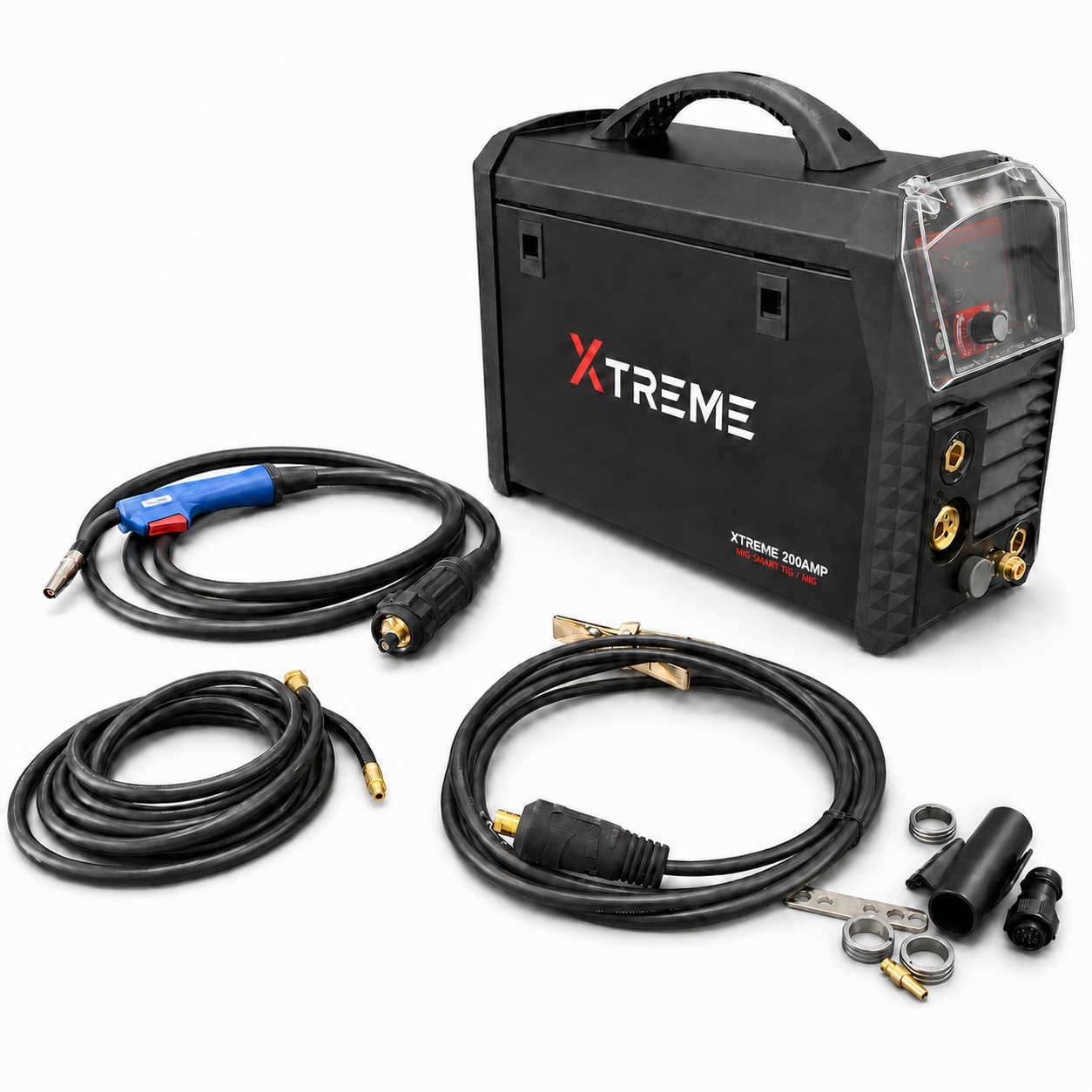

Included with the machine

• Pinnacle Xtreme Smart 200A welding machine.

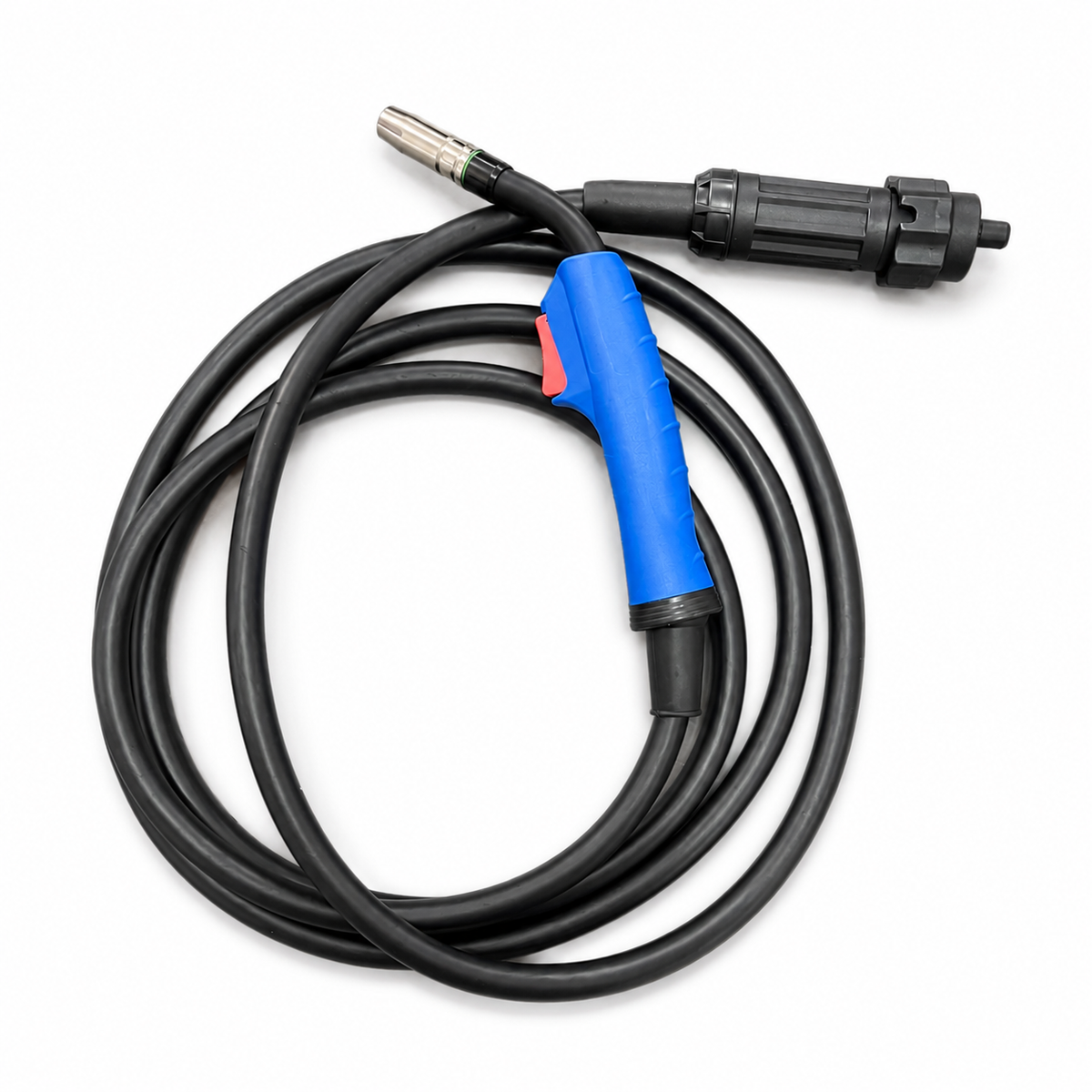

• MIG torch.

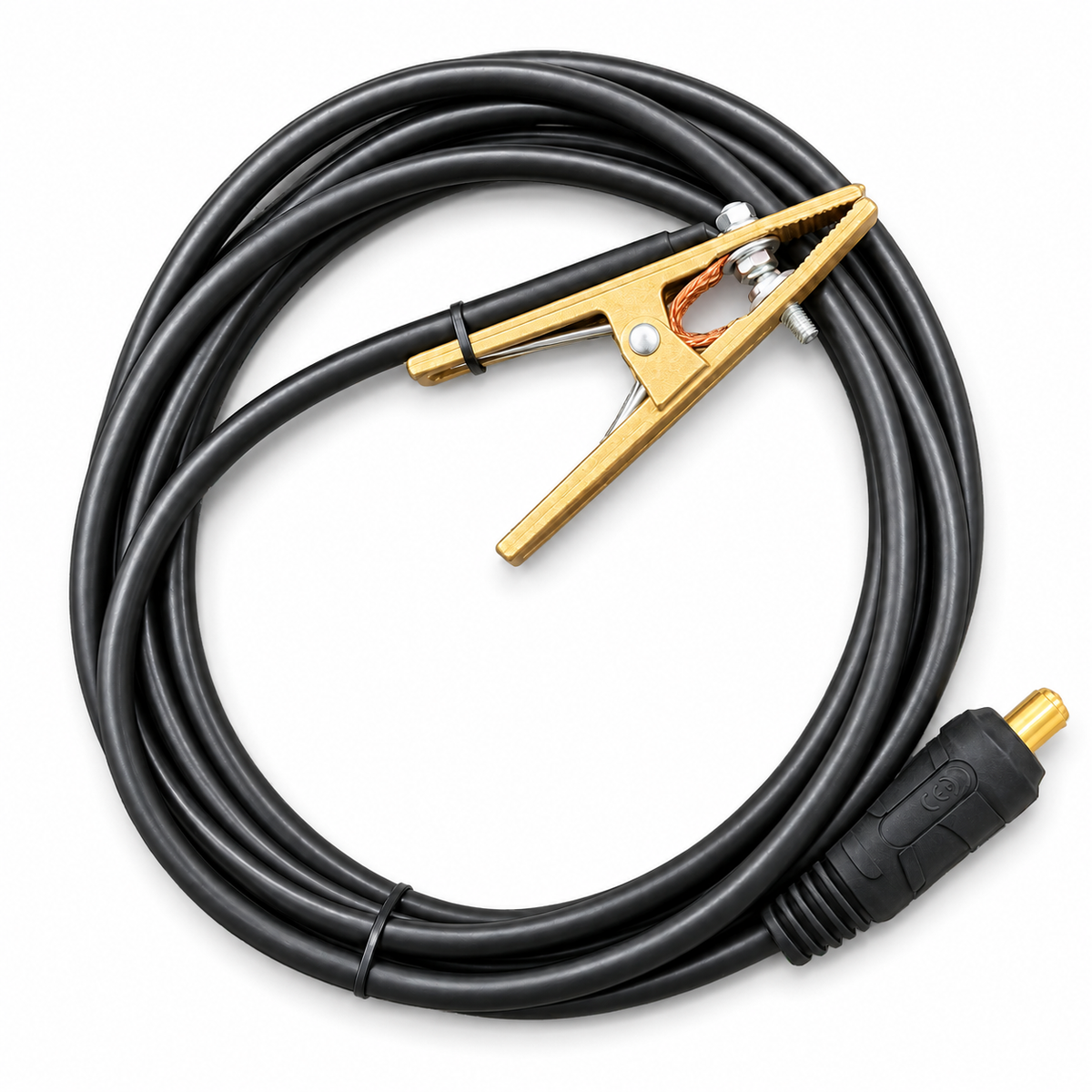

• Earth clamp and cable.

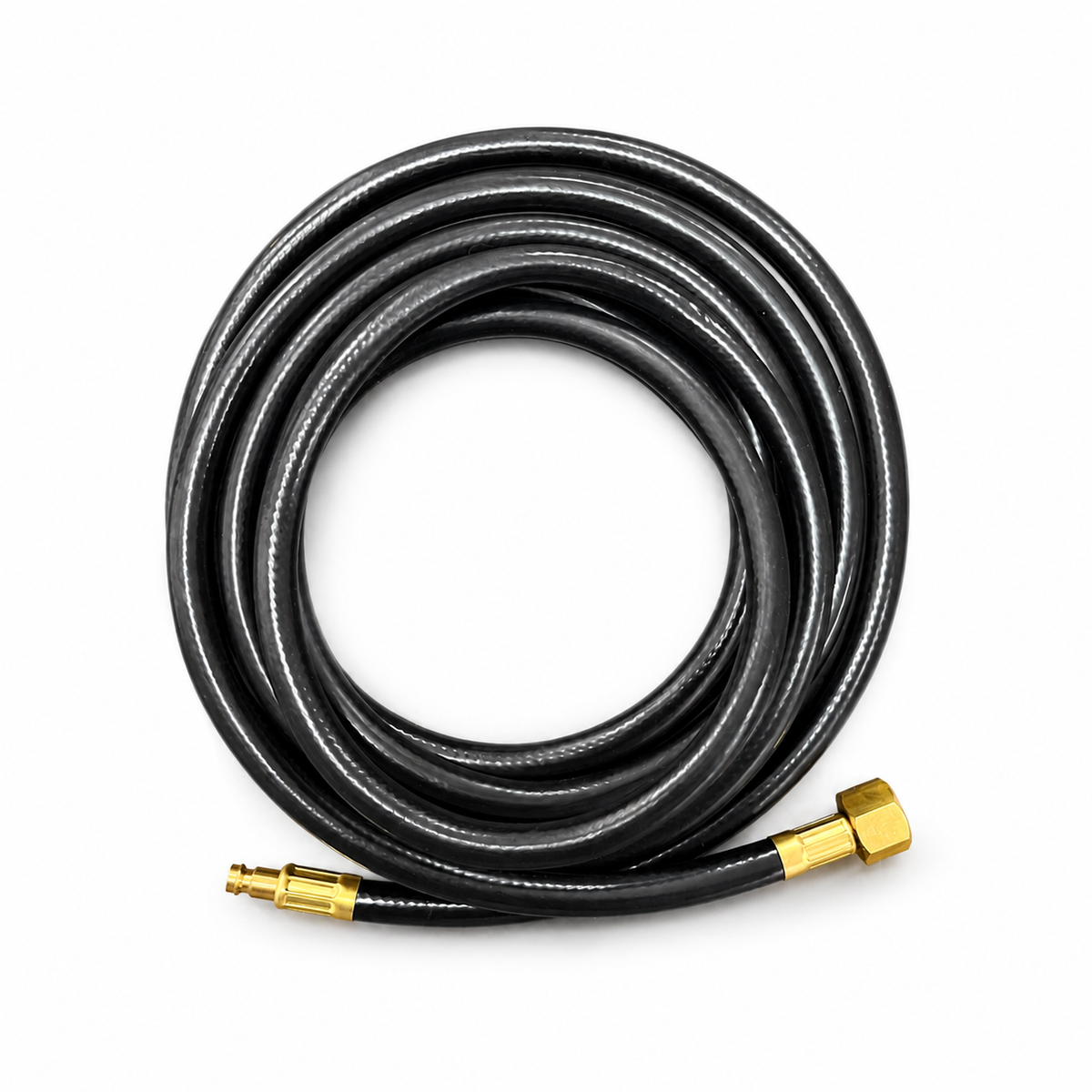

• Gas hose.

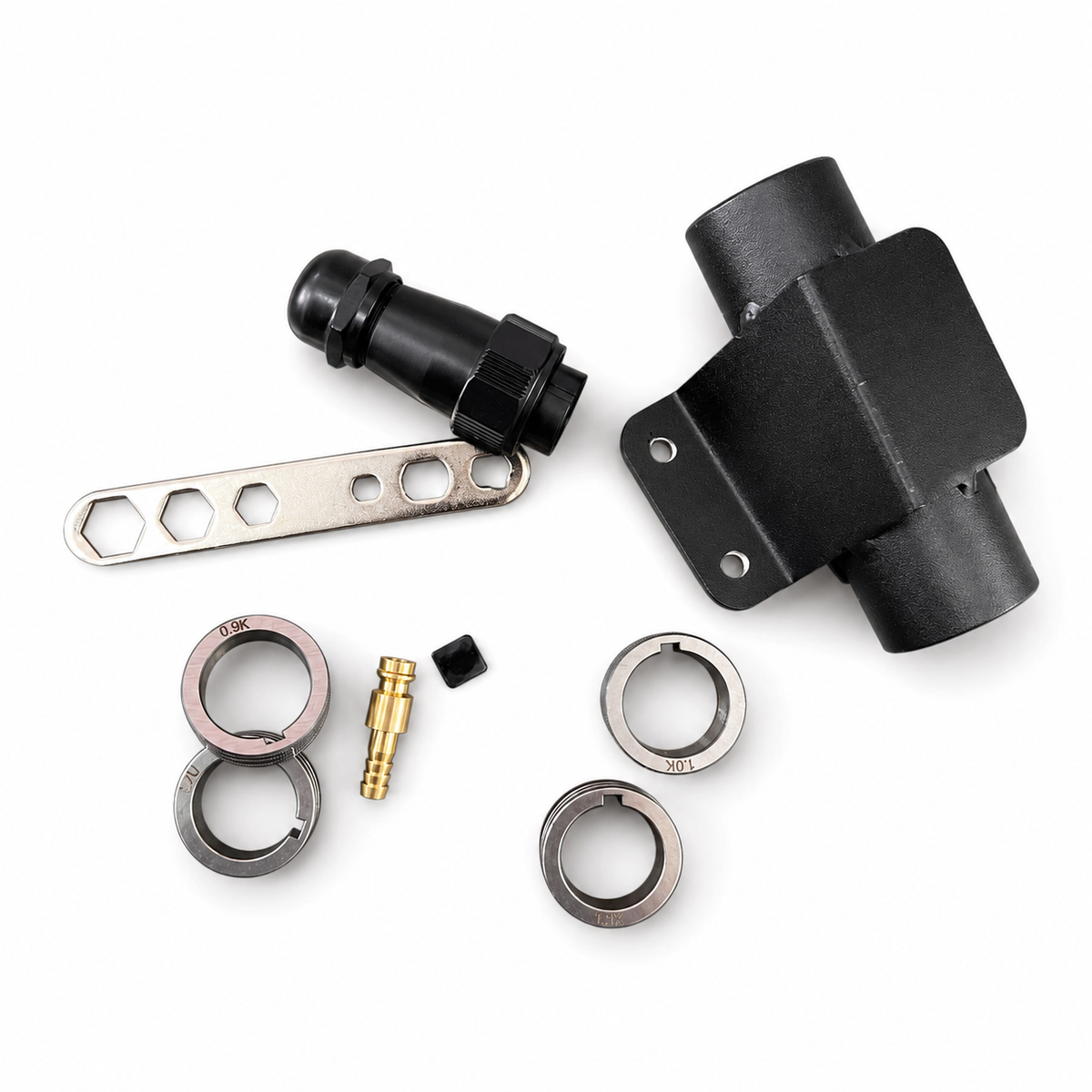

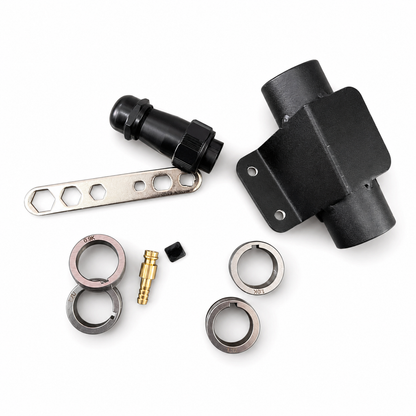

• MIG torch bracket.
• Drive rollers and supplied fittings.

Please note: A TIG torch and MMA electrode holder are not listed as standard included items. Confirm any optional accessories before ordering.

For indoor or sheltered workshop use. IP21S does not mean the machine is weatherproof. Confirm electrical circuit requirements with a qualified electrician before operating at maximum output.
