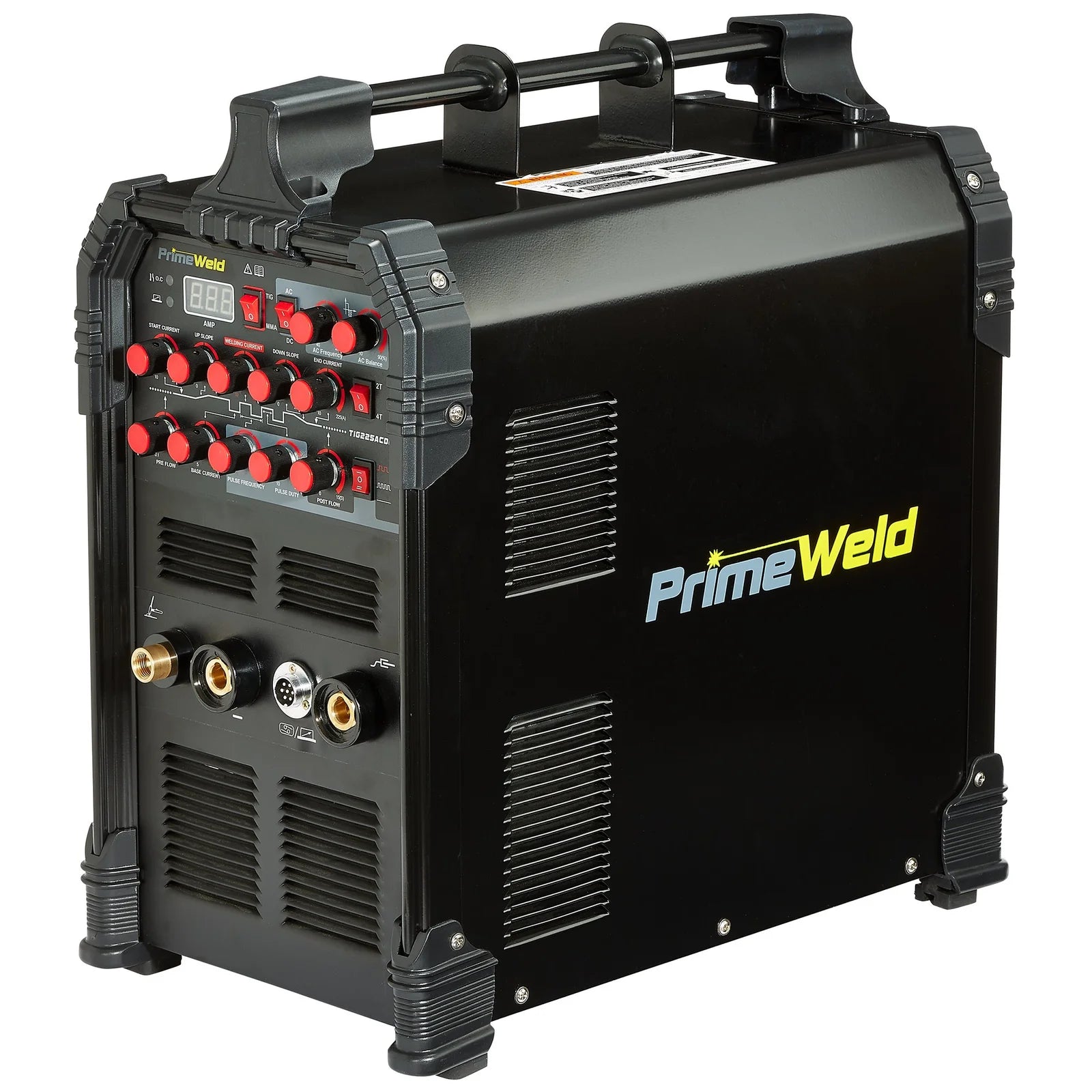

PRIMEWELD TIG225X

PRIMEWELD TIG225X

The PrimeWeld TIG225X is a 225 amp AC/DC pulse TIG and 180 amp stick welder for controlled aluminium, stainless-steel, and general fabrication work. This older TIG225ACDCP hardware revision provides high-frequency TIG starting, adjustable pulse and AC controls, and remote amperage control.

Key Features

• AC/DC pulse TIG up to 225A and DC stick welding up to 180A on 220V input
• 40% TIG duty cycle at 225A and 60% at 183A at 25°C
• Single-phase 110V or 220V, 50/60Hz input
• High-frequency TIG start with foot-pedal amperage control
• Adjustable pulse, AC frequency, AC balance, gas-flow, and slope parameters

Ideal For

• AC TIG fabrication and repair on aluminium
• DC TIG work on stainless and mild steel
• Light industrial fabrication
• Repair and maintenance work
• DC stick welding with compatible electrodes

What is Included

• PrimeWeld TIG225X AC/DC TIG Welding Machine
• TIG torch with consumables
• Foot-pedal amperage controller
• Electrode holder with cable
• Earth clamp with cable
• Argon hose
