TECMEN V3 PAPR FreFlow Welding Helmet

TECMEN V3 PAPR FreFlow Welding Helmet

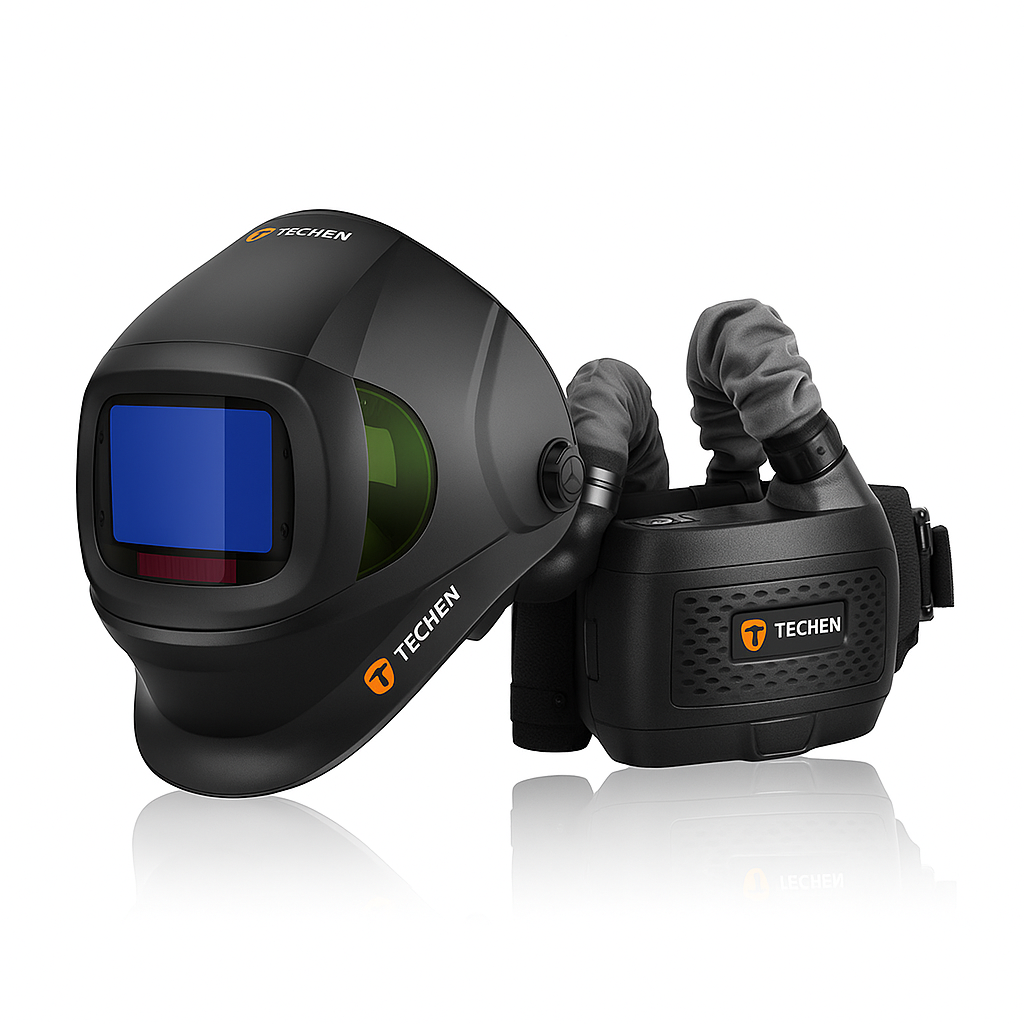

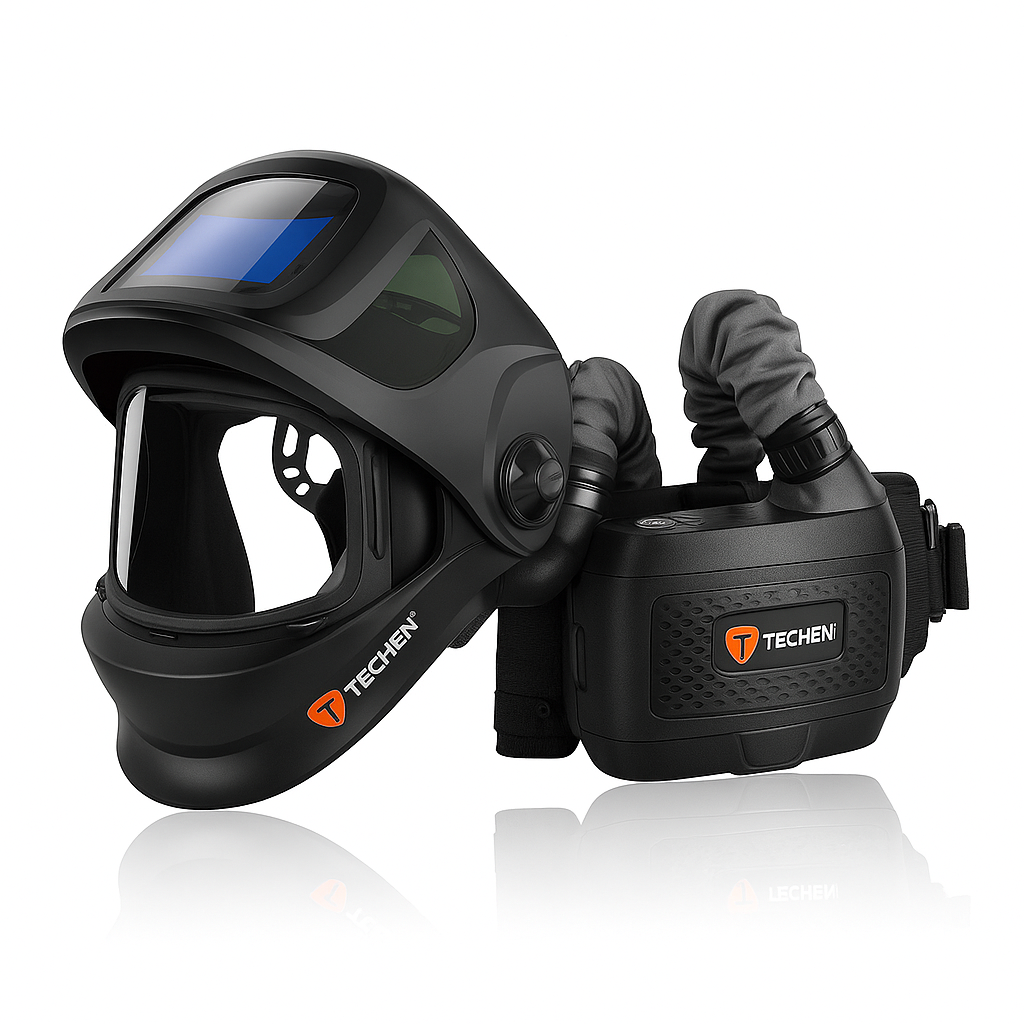

The TECMEN V3 PAPR FreFlow Welding Helmet is an advanced powered air-purifying respirator (PAPR) system designed for professional welders who demand the highest levels of optical clarity, comfort, and respiratory protection. Featuring a 1/1/1/1 optical class lens and variable shade ADF, it ensures superior visibility and safety during extended welding operations.

Equipped with an intelligent air filtration system, the FreFlow unit delivers a constant, clean airflow directly to the welder’s breathing zone, protecting against fumes, dust, and particulates while maintaining comfort and focus throughout the day.

Key Features

• Exceptional Optical Clarity (1/1/1/1): Provides distortion-free, true-color vision with excellent contrast and detail.

• Variable Shade Lens: Adjustable DIN 5–8 / 9–13, suitable for a wide range of welding processes.

• Digital Display Controls: Internal digital interface for precise adjustment of shade, sensitivity, and delay time.

• Powerful PAPR Airflow System: Constant airflow between 170–210 L/min, switchable at the press of a button.

• Dual-Purpose Control Button: Controls both helmet power and airflow activation.

• Clean Air Supply: Multi-stage filtration system protects against welding fumes and fine particulates.

• Auto On/Off Function: Intelligent ADF operation for convenience and extended battery life.

• Grind Mode: Enables safe grinding without changing helmets.

• Comfort-Fit Design: Ergonomically balanced for reduced neck strain and long-term wear.

• Comprehensive Protection: Shields face, eyes, and respiratory system from sparks, UV/IR radiation, and airborne contaminants.

Technical Specifications

• Brand: TECMEN

• Model: V3 PAPR FreFlow

• Optical Class: 1/1/1/1 (highest optical standard)

• Viewing Area: 107 × 75 mm

• Cartridge Size: 156 × 123 × 33 mm

• Shade Range: DIN 5–8 / 9–13 (variable)

• Light State: DIN 3.5

• Control Type: Internal digital display

• Sensors: 4 high-sensitivity sensors

• Switching Speed: 1/25,000 second (light to dark)

• Sensitivity Control: Adjustable (Low → High, digital)

• Delay Time: 0.1 – 1.0 s (adjustable, digital)

• Power Supply: Solar cell + 2 × CR2450 lithium batteries (replaceable)

• Low TIG Amp Rating: ≥ 2 amps (DC) / ≥ 2 amps (AC)

• Operating Temperature: -5 °C to +55 °C

• Storage Temperature: -10 °C to +55 °C

• Airflow Settings: 170 L/min or 210 L/min (adjustable)

• Applications: TIG (DC/AC pulse), MIG/MAG, Pulse MIG, Plasma Cutting, Grinding

• Not Suitable For: Laser welding
