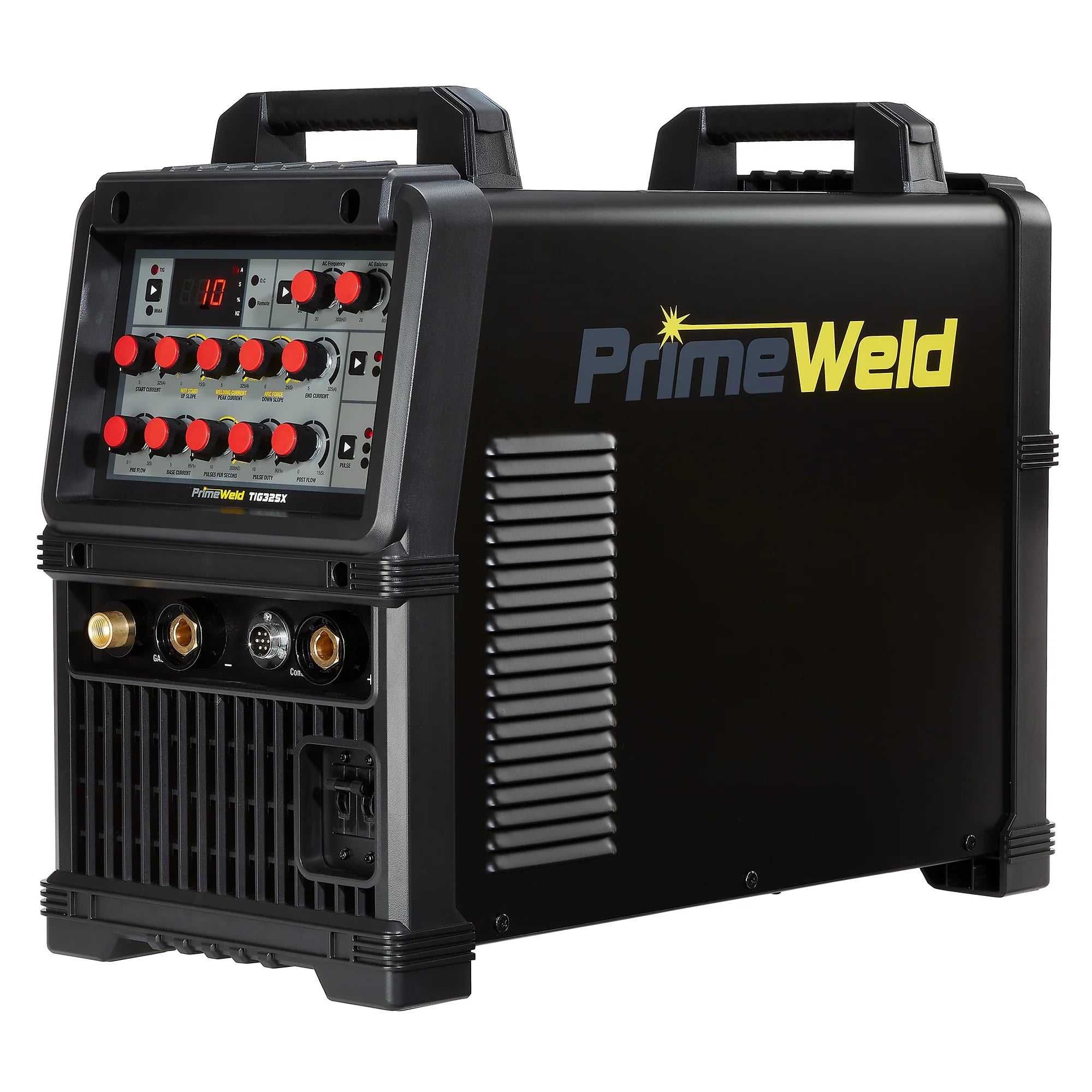

TIG325X AC/DC TIG Welder With Foot Pedal

TIG325X AC/DC TIG Welder With Foot Pedal

The PrimeWeld TIG325X is a 325 amp AC/DC pulse TIG and 250 amp stick welder for higher-output aluminium, stainless-steel, and general fabrication work. It combines high-frequency TIG starting with adjustable pulse and AC controls, remote amperage control, and a rated 60% TIG duty cycle at 280A on 240V input.

Key Features

• AC/DC pulse TIG up to 325A and DC stick welding up to 250A on 240V input
• 40% TIG duty cycle at 325A and 60% at 280A at 40°C
• Single-phase 120V or 240V, 50/60Hz input
• High-frequency TIG start with foot-pedal amperage control
• Adjustable pulse, AC frequency, AC balance, gas-flow, and slope parameters

Ideal For

• Higher-output AC TIG fabrication on aluminium
• DC TIG work on stainless and mild steel
• Light industrial fabrication
• Repair and maintenance work
• DC stick welding with compatible electrodes

What is Included

• PrimeWeld TIG325X AC/DC TIG Welding Machine
• TIG torch with consumables
• Foot-pedal amperage controller
• Electrode holder with cable
• Earth clamp with cable
• Argon hose
